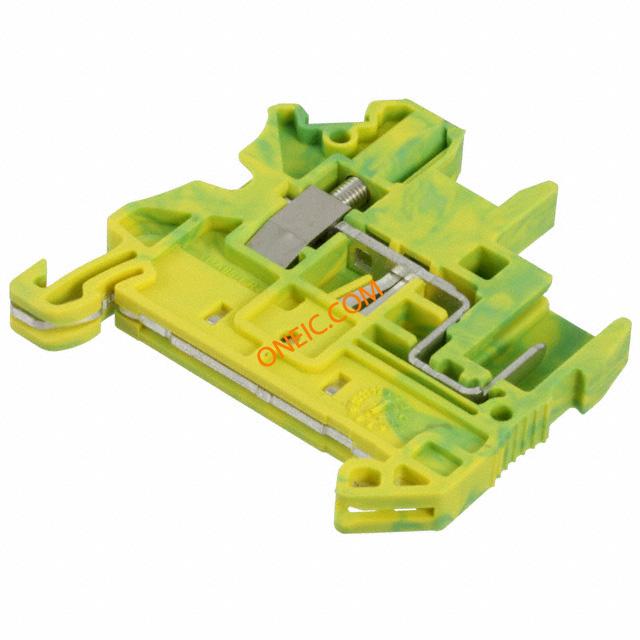

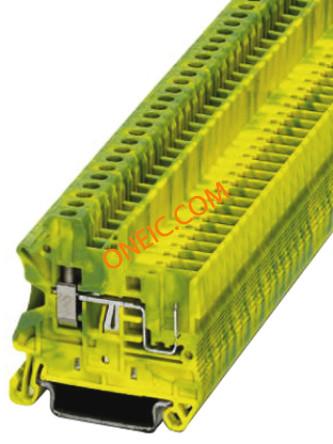

3045033
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks UT 2.5/1P-PE PLUGABLE TERM BLOCK Conn Terminal Block F 2 POS Screw CONN TERM BLK GROUND 12-26AWG TB,Screw connec,Width:5.2mm,greenyellow Pluggable screw terminal block UT 2,5/1P-PE DIN Rail Terminal Blocks UT 2.5/1P-PE PLUGABLE TERM BLOCK Conn;TermBlk;Screw;Pluggable;2;20-6AWG;Green-Yellow;PA Phoenix Contact UT 系列 绿色/黄色 带熔断器端子块 |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 商标名 | CLIPLINE UT |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | ||
机械参数
| 颜色 | Green / Yellow | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 55 mm |
| 长度 | 47.6 mm | 重量 | 3.197 lbs |
| 导线线规 | 26 | 端接方式 | Screw |
| 高度（最大） | 2.165" (55.00mm) | 外壳颜色 | Green, Yellow |
| 安装类型 | DIN Rail | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide (PA) |
| 总长度 | 50.5 | 剥线长度（范围） | 9mm |
| 端子宽度 | 5.2mm | 端接排数 | 插入式、螺钉拧紧 |
| 端接样式 | Screw | 连接器颜色 | Green/Yellow |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 26-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | UT | 叠层数 | 单层 |
| 层数 | 1 | ||
