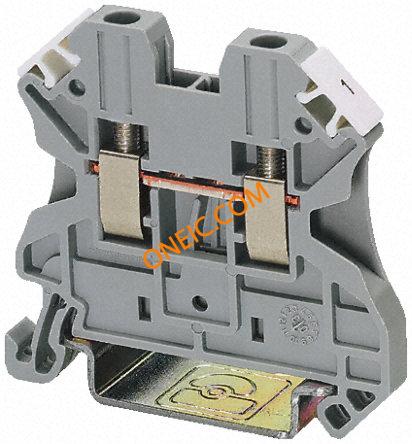

点击放大查看
3044160
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UT 10 FEEDTHRU TERM BLOCK Conn Universal Terminal Blocks F 2 POS Screw ST 76A CONN TERM BLK MOD 20-6AWG GRAY Non-Fuse DIN Rail Terminal, 57A, 1000V, Grey ,Screw Down Termination Conn;TermBlk;DINRail;FeedThru;Screw;2;20-6AWG;Gray;65ANom;600VNom Phoenix Contact UT 系列 灰色 馈通端子块 , 76A, 1000 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus,CSA,VDE | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 65A | UL电压 | 600V |
| 电流 - IEC | 57A | IEC电压 | 1000V |
| 额定电压 | 1000 V | 极数 | 2Poles |
| 最大额定电流 | 57A | 最小输入电压 | 1000V |
机械参数
| 颜色 | Gray | 深度 | 10.2 |
| 宽度 | 10.2 mm | 高度 | 55 mm |
| 长度 | 47.7 mm | 重量 | 0.627524 oz |
| 导线线规 | 20 → 6 AWG | 端接方式 | Screw |
| 安装类型 | Straight | 电缆材料 | 0.5 → 16mm² |
| 安装样式 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 46.9 |
| 主要材料 | DINRail | 剥线长度（范围） | 10mm |
| 端子宽度 | 10.2mm | 端接排数 | 螺钉拧紧 |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 6-20 AWG |
| 线规或范围 - mm² | 0.5-16mm² | ||
产品信息
| 类型 | Universal Terminal Blocks | 连接器性别 | F |
| 系列 | UT | 产品特性 | Universal |
| 叠层数 | 单层 | 层数 | 1 |
| 基础产品编号 | UT10 | ||
环境参数
| 工作温度 | +110°C | ||
