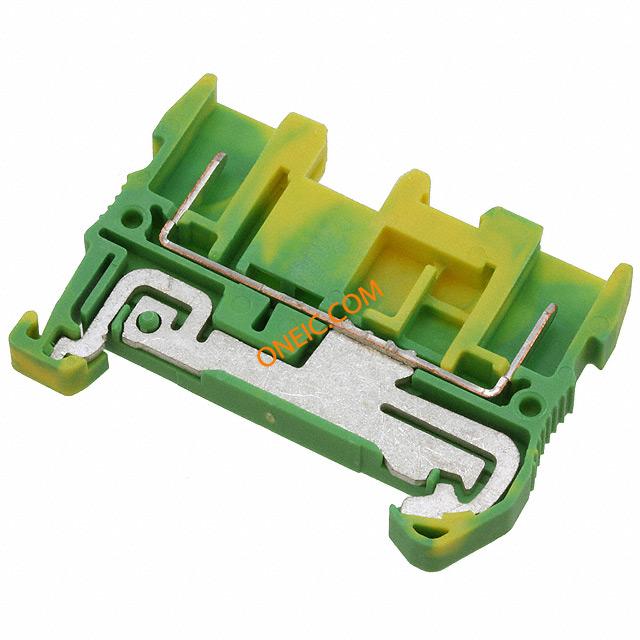

点击放大查看
3042146
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック ST 2.5/2P-PE Conn Feed-Through Modular Terminal Blocks F 2 POS FEED THROUGH TERM BLOCK 28-12AWG Feed-through modular terminal block ST 2,5/2P-PE DIN Rail Terminal Blocks ST 2.5/2P-PE ST25/2P-PE |
| 分类 |
商业参数
| 商标名 | CLIPLINE ST | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 颜色 | Green / Yellow | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 36.5 mm, 44 mm |
| 长度 | 1.933" (49.10mm) | 重量 | 0.286072 oz |
| 导线线规 | 28 | 高度（最大） | 1.732" (44.00mm) |
| 外壳颜色 | Green, Yellow | 安装类型 | DIN Rail |
| 安装样式 | Spring Cage | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 49.1 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.2mm |
| 端接样式 | Plug Receptacles | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-28 AWG | 线规或范围 - mm² | 0.08-4mm² |
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | ST | 层数 | 1 |
