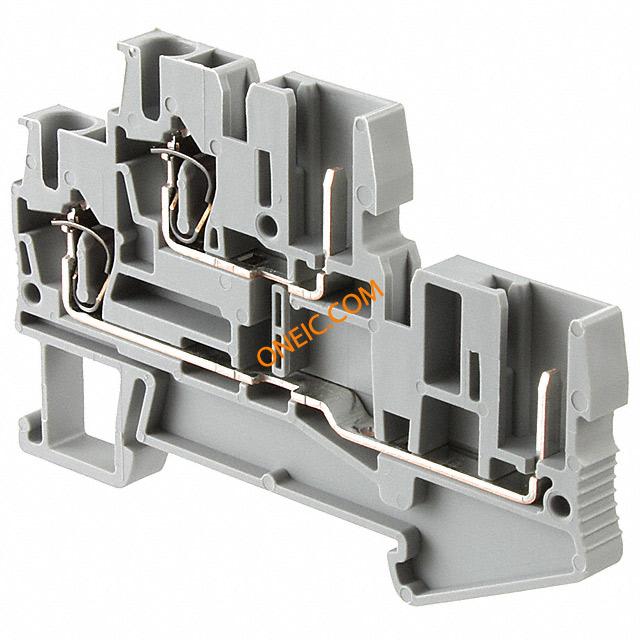

3040054
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.2MM SPRG CAGE 28-12 AWG GRAY Conn Spring Cage 4 POS 22A LEVEL TERM BLOCK 28-12AWG Pluggable spring-cage modular terminal block STTB 2,5/2P TerminalBlock;Double-Level;28-12AWG;Spring-Cage/Plug-inConn;STTB2.5/2P |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 商标名 | CLIPLINE ST |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 22A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 22 A |
| 最小输入电压 | 500V | ||
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 55 |
| 长度 | 2.913" (74.00mm) | 重量 | 0.358383 oz |
| 导线线规 | 28 | 高度（最大） | 2.165" (55.00mm) |
| 外壳颜色 | Gray | 安装类型 | DIN Rail |
| 排数 | 4 | 壳体材料 | Polyamide |
| 总长度 | 71.5 | 剥线长度（范围） | 10mm |
| 端子宽度 | 5.2mm | 端接样式 | Plug Receptacles, Push In, Spring |
| 触点数 | 4 | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-28 AWG |
| 线规或范围 - mm² | 0.08-4mm² | ||
产品信息
| 类型 | Spring Cage | 系列 | ST |
| 层数 | 2 | ||
