3038312
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック ST 2.5-L/L/N (BLUE P Conn Feed-Through Modular Terminal Blocks 6 POS 24A CONN TERM BLOCK Feed-through modular terminal block ST 2,5-L/L/N DIN Rail Terminal Blocks ST 2.5-L/L/N (BLUE P ST25-L/L/N |
| 分类 |
商业参数
| 商标名 | CLIPLINE ST | 其他名称 | ST 2 5-L/L/N |
| 标准包装规格 | 50 | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - IEC | 24A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 24 A |
机械参数
| 颜色 | Gray | 宽度 | 5.2 mm |
| 长度 | 99.5 mm | 重量 | 0.629993 oz |
| 导线线规 | 28 | 安装类型 | NS 35/7.5, NS 35/15 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.2mm |
| 端接样式 | Push In, Spring | 触点数 | 6 |
| 位数 | 9 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-28 AWG | 线规或范围 - mm² | 0.08-4mm² |
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 系列 | ST |
| 层数 | 3 | 连接方式 | Spring Cage |
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0818108
Phoenix Contact
Unspecified Tools & Accessories UC-TM 5 UNICARD 90 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=96 LABELS Phoenix Contact 0818108 Marker Card Terminal Block, Series: UC-TM Terminal Block Tools & Accessories UC-TM 5 UNICARD 90 SECTION MarkerCard;TermBlk;5.2mm;96labelspercard;white Phoenix Contact UC-TM 系列 标记卡
0825025
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZBF 5 CUS 1 strip is 1 piece Terminal Marker
0824962
Phoenix Contact
Terminal Block Tools & Accessories ZB 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZB 5 CUS 1 strip is 1 piece
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
3030941
Phoenix Contact
Terminal Block Tools & Accessories WST 2.5 5.2MM WARNING COVER Warning Cover, 5-Pos., For Terminal Width 5.2mm WARNING COVER 5POS FOR TERM BLCK WST25

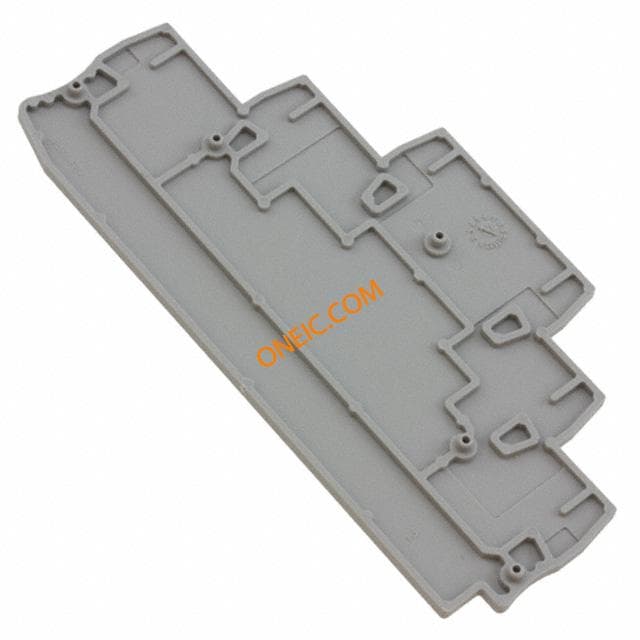

3036660
