点击放大查看

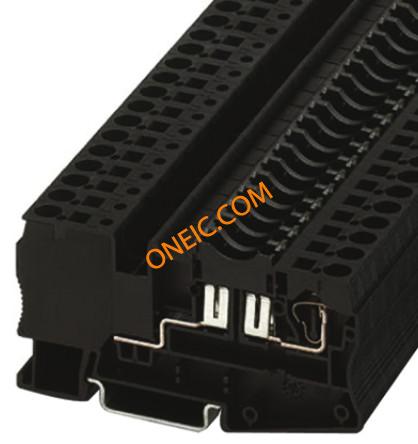

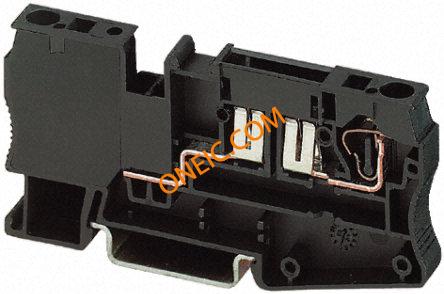

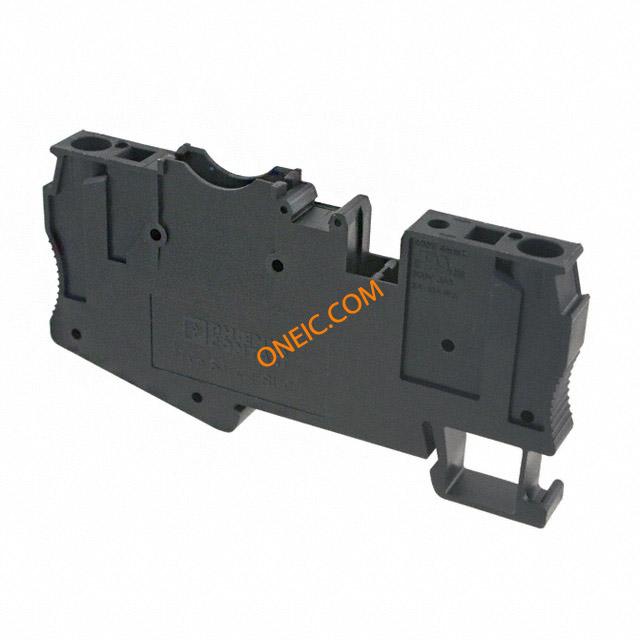

3036372
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks ST 4-FSI/C Conn DIN Rail Fused F 2 POS ST 30A CONN TERM BLK FUSE FOR MINI CIR Non-Fuse DIN Rail Terminal, 30A, 400V, Black ,Spring Termination FUSE MODULAR TERMINAL BLOCK Conn;TermBlk;Fuse;1;2;28-10AWG;Black;30A;300V;6kV;PA Phoenix Contact ST Clipline 系列 黑色 标准 DIN 导轨端子 , 30A, 400 V |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 商标名 | CLIPLINE ST |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 认证机构 | cULus |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 300V |
| 电流 - IEC | 30A | IEC电压 | 400V |
| 额定电压 | 400 V | 极数 | 2Poles |
| 开关功能 | Fuse, Removable Plug | 最大额定电流 | 30 A |
| 最小输入电压 | 400V | 最小供电电压 | 400V |
机械参数
| 颜色 | Black | 深度 | 8.2 mm |
| 间距 | 8.2mm | 宽度 | 8.2 mm |
| 高度 | 51 mm | 长度 | 86.5 mm |
| 重量 | 0.729466 oz | 材料（通用） | Nylon |
| 包装方式 | Bulk | 导线线规 | 28 |
| 端接方式 | Spring | 安装类型 | Straight |
| 电缆材料 | 0.08 → 4 mm, 0.08 → 6 mm | 排数 | 2 |
| 壳体材料 | Polyamide (PA) | 总长度 | 86.5 mm |
| 主要材料 | DINRail | 尺寸/外形 | 86.5mmLx8.2mmWx43.5mmH |
| 剥线长度（范围） | 10mm | 端子宽度 | 8.2mm |
| 端接排数 | 弹簧 | 插针孔直径 | 6.2mm |
| 端接样式 | Push In, Spring | 连接器颜色 | Black |
| 触点数 | 2 | 接触件端接 | 3 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 28-10 | 线规或范围 - mm² | 10 |
| 每排/每行位置数 | 1 | 触点镀层厚度 - 柱 | 8.2mm |
产品信息
| 制造商 | 0.08-6mm² | 类型 | Wire to Wire |
| 连接器性别 | F | 系列 | ST |
| 保险丝尺寸 | C | 保险丝类型 | Blade, C |
| 断开类型 | Fuse, Removable Plug | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | ST4-FSI/C |
环境参数
| 工作温度 | +60°C | ||
