3036369
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks ST 4-HESI (5X20) Fuse Terminal Block 6.3A 300V CONN TERM BLK FUSE MNT ON NS 35 ST4-HESI spring cage fuse terminal,52A Conn;TermBlk;Fuse;1;2;28-10AWG;Black;10A;300V;6kV;PA Phoenix Contact, ST 系列 黑色 带熔丝的 DIN 导轨端子 单层 2 连接, 5 x 20mm 熔断器 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | CLIPLINE ST |
| 子类别 | Fuse Accessories | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 电流 - IEC | 6.3A | IEC电压 | 500V |
| 额定电压 | 500 V | 极数 | 2Poles |
| 最大额定电流 | 6.3A | ||
机械参数
| 颜色 | Black | 间距 | 6.2mm |
| 宽度 | 6.2 mm | 高度 | 70 mm |
| 长度 | 61.5 mm | 重量 | 0.522055 oz |
| 导线线规 | 28 → 10 AWG | 端接方式 | Spring Cage |
| 主要材料 | DINRail | 尺寸/外形 | 61.5mmLx6.2mmWx62.5mmH |
| 剥线长度（范围） | 10mm | 端子宽度 | 6.2mm |
| 端接排数 | 弹簧笼 | 插针孔直径 | 6.2mm |
| 端接样式 | Push In, Spring | 连接器颜色 | Black |
| 触点数 | 2 | 接触件端接 | 3 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-28 AWG | 线规或范围 - mm² | 0.08-6mm² |
产品信息
| 类型 | Fuse Terminal Block | 系列 | ST |
| 保险丝尺寸 | 5 x 20mm | 保险丝类型 | 5mm x 20mm |
| CAD图纸 | 3D CAD 模型 | 断开类型 | Fuse, Lever |
| 行业别名 | ST 4-HESI (5X20) | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | ST4-HESI(5X20) |
文档与媒体
相关型号
1050017:0001
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 1-10 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos1-10;1strip10labels Marker; Width:5mm; 1-10 marks
1050017:0031
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 31-40 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Phoenix Contact 1050017:0031 Marker Strip Terminal Block, Series: ZB Terminal marking ZBMarkingStrip(1stripof10labels)marked31to40horizontally5.2mm Marker; Width:5mm; 31-40 marks Phoenix Contact ZB5 31 to 40 系列 标记条
1050211
Phoenix Contact
Terminal Block Tools & Accessories ZB 5/OG LGS: 10-100 Cable Accessories Zack Strip Polyamide Transparent ZACK STRIP PRINTED HORIZ 10-100 Terminal marking ZB 5/OG,LGS: 10-100 ZB5/OGLGS:10-100 Phoenix Contact ZB 系列 端子标记
1204517
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SZF 1-0 6X3 5 Digital Input Module SCREWDRIVER SLOT 0.6X3.5MM 7.13" Bladed screwdriver SZF 1-0,6X3,5 Screwdriver, blade: 0.6 x 3.5 x 100 mm, length 180 mm Actuationtool,forSTterminalblocks,size:0.6x3.5x100mm
1050004
Phoenix Contact
ターミナルブロック・ツールとアクセサリ 5.2mm BLANK STRIPS CONNECTOR ACCESSORIES CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1050004 Marker Strip Terminal Block, Series: ZB Terminal Block Tools & Accessories 5.2mm BLANK STRIPS Zack Strip, Unprinted, 10Section, For Individual Labeling With Mpen, Zbt Or Cms System, Pack Is Sufficient For 100 Terminal Blocks, ... Zack Strip, Unprinted, 10Section, For Individual Labeling With Mpen, Zbt Or Cms System, Pack Is Sufficient For 100 Terminal Blocks, For A Terminal Width Of 5.02mm, Color White ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;5.2mm;Blank;White Marker; Width:5mm; for labelling by user Phoenix Contact ZB 系列 标记条

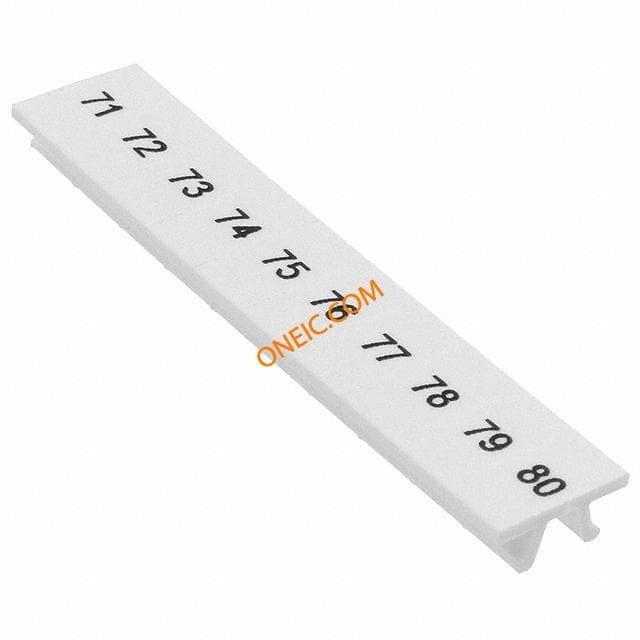

1050017:0071
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm ID STRIP 71-80 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos71-80;1strip10labels Marker; Width:5mm; 71-80 marks White Zack Marker Strip Numbers 71-80
3004207
Phoenix Contact
Terminal Block Tools & Accessories VS Connection Pin, For Coupling Disconnect Knives, In Plastic, 1m Long CONNECTION PIN 1000 MM GRAY Connection pin VS CONNECTIONPIN,FORFUSETERMINALBLOCKS

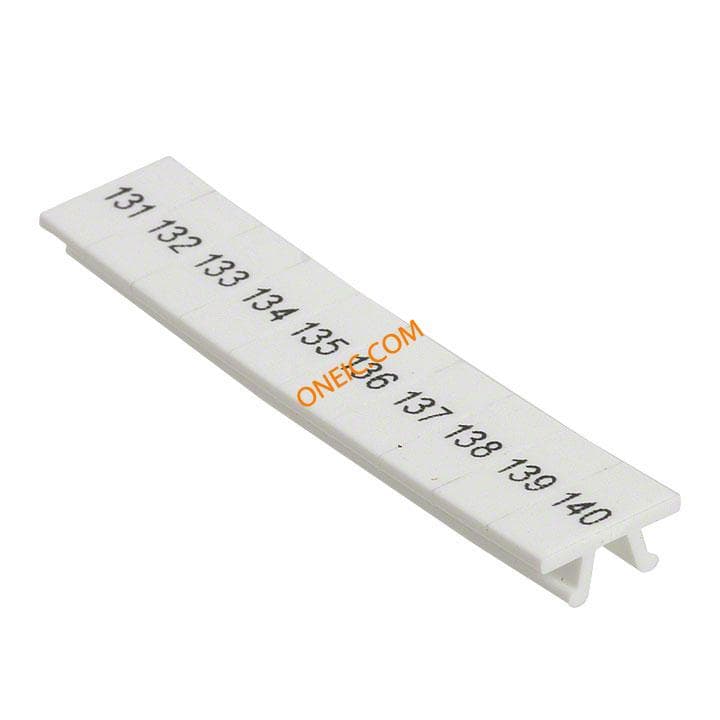

1050017:0131
Phoenix Contact
Terminal Block Tools & Accessories 5.2MM ID STRIP 131-140 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White TAG MARKING TERM BLOCK 131-140 Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos131-140;1strip10labels
1050017:0011
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 11-20 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Phoenix Contact 1050017:0011 Marker Strip Terminal Block, Series: ZB ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos11-20;1strip10labels Marker; Width:5mm; 11-20 marks Phoenix Contact ZB5 11 to 20 系列 标记条
1050017:0021
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 21-30 CONN ACC MARKER STRIP PREPRINT Phoenix Contact 1050017:0021 Marker Strip Terminal Block, Series: ZB Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos21-30;1strip10labels Marker; Width:5mm; 21-30 marks Phoenix Contact ZB5 21 to 30 系列 标记条
1050017:0091
Phoenix Contact
Terminal Block Tools & Accessories 5.2MM ID STRP 91-100 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos91-100;1strip10labels

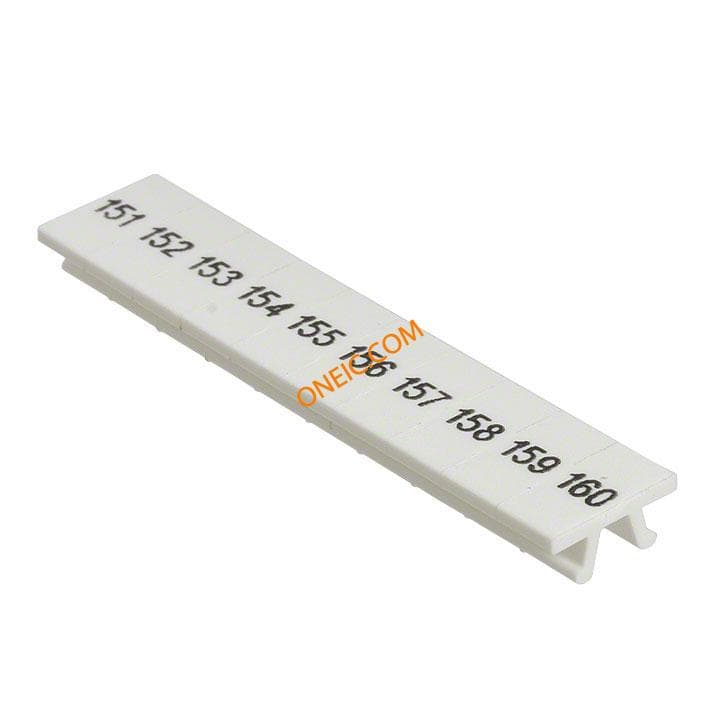

1050017:0151
Phoenix Contact
Terminal Block Tools & Accessories ZB5 LGS:FORTL.ZAHLEN Connector Accessories Zack Marker Strip Polyamide White TAG MARKING TERM BLOCK 151-160 Terminal marking ZACKMARKERSTRIP,151TO160
1050017:0061
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 61-70 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos61-70;1strip10labels Marker; Width:5mm; 61-70 marks White Zack Marker Strip Numbers 61-70
1050017:0081
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm ID STRIP 81-90 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos81-90;1strip10labels White Zack Marker Strip Numbers 81-90
5060906
Phoenix Contact
Terminal Block Tools & Accessories ZB 5/WH-100:UNBEDRUC Cable Accessories Unprinted Zack Strip Whit ZACK STRIP UNPRINT 10 SECT WHIT ZBMarkingStrip;TermBlk;5mmwidth;Blank;White Phoenix Contact ZB 5/WH-100 系列 标记条

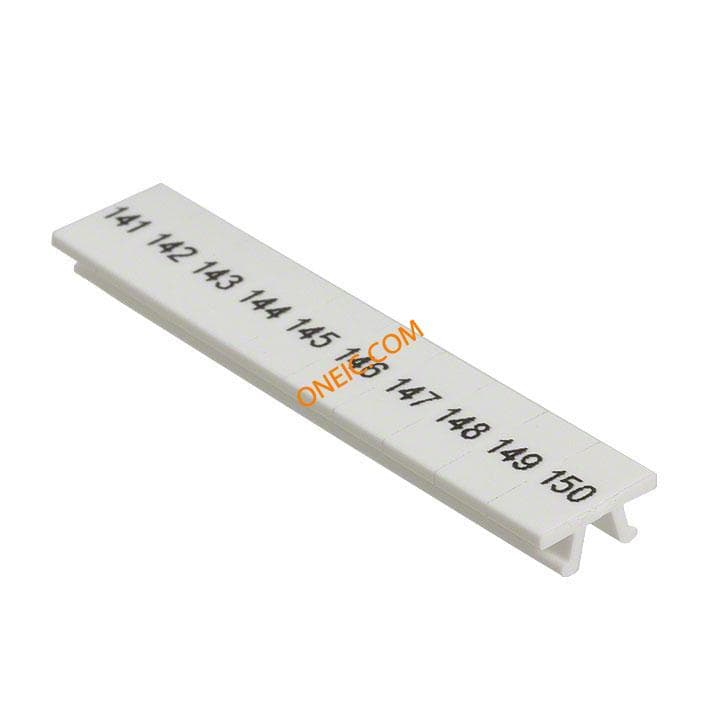

1050017:0141
Phoenix Contact
Terminal Block Tools & Accessories ZB5 LGS:FORTL.ZAHLEN Connector Accessories Zack Marker Strip Polyamide White TAG MARKING TERM BLOCK 141-150 Terminal marking ZACKMARKERSTRIP,141TO150
3030721
Phoenix Contact
Terminal Block Tools & Accessories ATP-ST 4 Partition Plate, For Visual And Electrical Separation Of Terminal Groups, Width 2mm, Color Gray PARTITION PLATE TERM BLOCK 2MM Phoenix Contact 3030721 Partition Plate Terminal Block, Series: ATP-ST PartitionPlate;TermBlk;Gray;61mmL;2mmW;42mmH Separating plate; Application: ST2.5,ST4; polyamide Phoenix Contact ATP-ST 系列 隔板
1050017:0041
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 41-50 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Phoenix Contact 1050017:0041 Marker Strip Terminal Block, Series: ZB Terminal marking ZBMarkingStrip(1stripof10labels)marked41to50horizontally5.2mm Marker; Width:5mm; 41-50 marks Phoenix Contact ZB5 41 to 50 系列 标记条

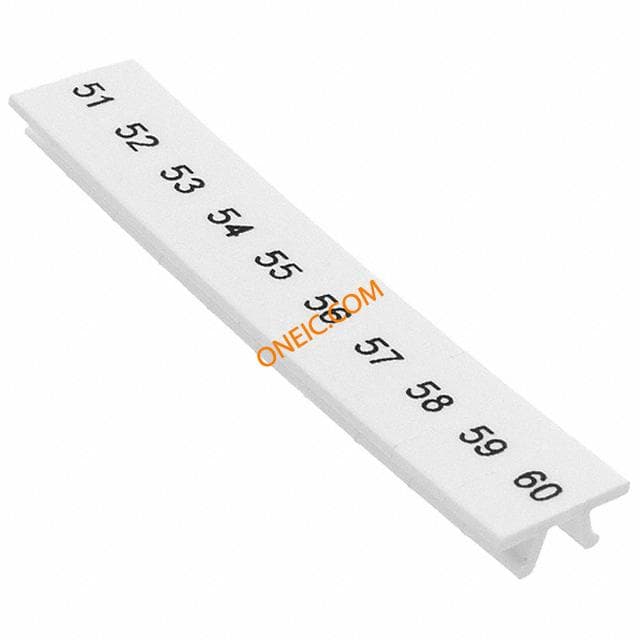

1050017:0051
