3034400

制造商	Phoenix Contact GmbH & Co. KG
描述	DIN Rail Terminal Blocks DTME 6 TEST BLOCK PUSH-IN Conn Feed-Thru F 2 POS 30A TEST DISCONNECT TERM BLOCK Non-Fused DIN Rail Terminal, 30A, 500V, Grey ,Spring Cage Termination DTME6 Phoenix Contact 303 系列灰色测试断开端子块 , 30A, 500 V
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

产品	DIN Rail Terminal Blocks	商标名	CLIPLINE DT
产品类别	DIN Rail Terminal Blocks	标准包装数量	50
工厂包装数量	50

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

电流 - UL	30A	UL电压	600V
电流 - IEC	30A	IEC电压	500V
额定电压	500 V	最大额定电流	30A
最小输入电压	500V

机械参数

颜色	Gray	深度	8.2
间距	8.2mm	宽度	8.2 mm
高度	49.6 mm	长度	100.8 mm
导线线规	20 → 8 AWG	端接方式	Spring Cage
安装类型	NS 35/7.5, NS 35/15	电缆材料	0.5 → 10mm²
排数	1	壳体材料	Polyamide
总长度	100.8	剥线长度（范围）	12mm
端子宽度	8.2mm	端接排数	弹簧笼
端接样式	Push In, Spring	连接器颜色	Grey
触点数	2	位数	2
绝缘材料 - 材质	Polyamide (PA), Nylon	线规或范围 - AWG	8-24 AWG
线规或范围 - mm²	0.5-10mm²

产品信息

类型	Wire to Wire	连接器性别	F
系列	303	断开类型	Switch, Lever
叠层数	单层	层数	1

文档与媒体

PDF 文档

3034400

相关型号

1204119

Phoenix Contact

Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH

¥47.7360

详情

3032402

Phoenix Contact

Terminal Block Tools & Accessories FBS 1/4/7/10-8 Plug-In Bridge Number Of Positions 3 Color Red BRIDGE POTENTIAL DISTRIBUT 3POS Phoenix Contact 3032402 Plug In Bridge Terminal Block, Series: FBS FBS1/4/7/10-8

¥31.0556

详情

3032376

Phoenix Contact

Terminal Block Tools & Accessories FBS 1-4/8 Plug-In Bridge Number Of Positions 2 Color Red BRIDGE POTENTIAL DISTRIBUT 2POS Phoenix Contact 3032376 Plug In Bridge Terminal Block, Series: FBS FBS1/4-8

¥19.7880

详情

3030323

Phoenix Contact

ターミナルブロック・ツールとアクセサリ FBS10-8 Conn Jumper PL 10 POS ST BRIDGE TERM BLOCK 10POS Phoenix Contact 3030323 Plug In Bridge Terminal Block, Series: FBS Terminal Block Tools & Accessories FBS10-8 Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:10; Width:8mm Phoenix Contact FBS 系列 10 极跳片

¥28.8320

详情

3034484

Phoenix Contact

ターミナルブロック・ツールとアクセサリ SB-ME 4-8 4P SHORTING COMP Conn Switching Jumper M 4 POS ST SWITCHING JUMPER 24.7MM 4POS Phoenix Contact 3034484 Jumper Terminal Block, Series: SB-ME Terminal Block Tools & Accessories SB-ME 4-8 4P SHORTING COMP SB-ME4-8 Phoenix Contact

¥36.9920

详情

3034426

Phoenix Contact

Terminal Block Tools & Accessories D-DTME 6 END COVER Cover Width2.2 Mm Color Gray, 0.0052 Kg Weight/Piece COVER WIDTH: 2.2 MM COLOR: GRAY Phoenix Contact 3034426 Cover Terminal Block, Series: D-DTME D-DTME6 Phoenix Contact

¥6.3104

详情

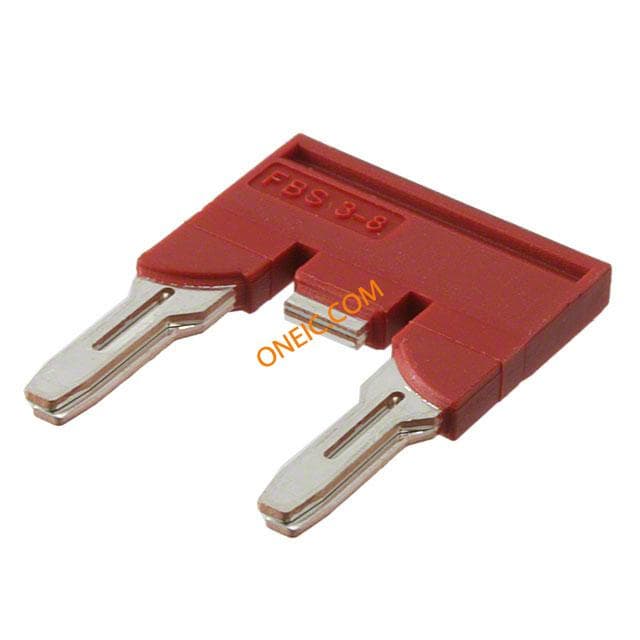

3032363
