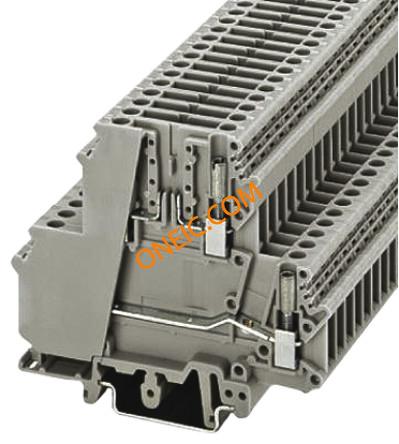

点击放大查看
3007042
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 6.2mm DBL LEVEL BASE Conn Modular Terminal Blocks F 4 POS Screw ST 26A CONN BASE TERM BLK FOR FUSE PLUG TB,Screw connection,Width:6.2mm,grey Conn;TermBlk;0.2to4sq.mm.;6.2mm;400V;26A;24-12AWG;Gray Phoenix Contact UKK 系列 灰色 馈通端子块 , 26A, 400 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus,CSA | 材料阻燃等级 | UL94 V-2 |
电气参数
| UL电压 | 300V | 电流 - IEC | 26A |
| IEC电压 | 400V | 额定电压 | 400 V |
| 极数 | 4Poles | 开关功能 | Open |
| 最大额定电流 | 26A | 最小输入电压 | 400V |
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 73 mm |
| 长度 | 80 mm | 重量 | 0.821178 oz |
| 导线线规 | 24 → 12 AWG | 端接方式 | Screw |
| 安装类型 | Straight | 安装样式 | DIN Rail |
| 排数 | 4 | 壳体材料 | Polyamide |
| 总长度 | 80 | 主要材料 | DINRail |
| 剥线长度（范围） | 8mm | 端子宽度 | 6.2mm |
| 端接排数 | 螺钉 | 插针孔直径 | 6.2mm |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 4 | 交叉孔直径 | 0.2to4sq.mm. |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-26 AWG | 线规或范围 - mm² | 0.2-4mm² |
| 触点镀层厚度 - 柱 | 6.2mm | ||
产品信息
| 制造商 | 0.2-4mm² | 类型 | Modular Terminal Blocks |
| 级别 | DoubleLevel | 连接器性别 | F |
| 系列 | UKK | 断开类型 | Open |
| 叠层数 | 双层 | 层数 | 2 |
| 基础产品编号 | UKK5-TG | ||
