点击放大查看

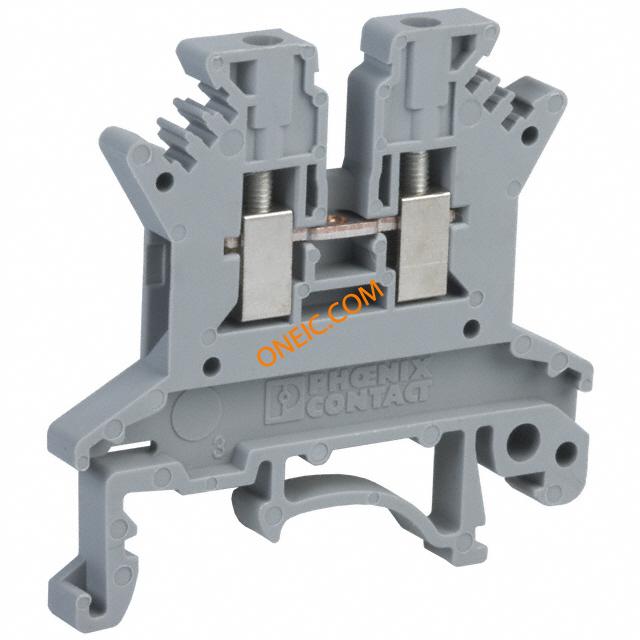

3005837
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック UK 1.5N 4.2mm FEED THRU 300V 15A GRAY Conn Modular Terminal Blocks F 2 POS Screw ST 17.5A CONN TERM BLK FEED THRU 4.2MM TB,Screw connection,Width:4.2 mm,grey Feed-through modular terminal block UK1,5 N DIN Rail Terminal Blocks UK 1.5N 4.2mm FEED THRU 300V 15A GRAY TERMINAL BLOCK, DIN, 1.5MM, GREY Conn;TermBlk;FeedThru;Screw;2;0.14-1.5sq.mm;26-16AWG;4.2mmW;Gray Phoenix Contact UK 系列 灰色 标准 DIN 导轨端子 , 78.5A, 500 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 认证机构 | :EN 50281, EN 60979, IEC 60079 |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 15A | UL电压 | 300V |
| 电流 - IEC | 17.5A | IEC电压 | 500V |
| 额定电压 | 500 V | 极数 | :1 |
| 导体绞线 | :1.5mm² | 工作电压 | :500V |
| 最大额定电流 | 78.5A | 最小输入电压 | 500V |
| 最小供电电压 | 500V | ||
机械参数
| 颜色 | Gray | 深度 | 4.2 mm |
| 间距 | :4.2mm | 宽度 | 4.2 mm |
| 高度 | 42 mm | 长度 | 42.5 mm |
| 重量 | 3.527 lbs | 导线线规 | 26 → 16 AWG |
| 端接方式 | Screw | 安装类型 | Straight |
| 端子类型 | :Screw | 连接器类型 | :Terminal Block, DIN Rail |
| 接触镀层 | :- | 安装样式 | DIN Rail |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | Polyamide | 总长度 | 42.5 mm |
| 剥线长度（范围） | 7mm | 端子宽度 | 4.2mm |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 14-30 AWG |
| 线规或范围 - mm² | 0.14-1.5mm² | 第一连接器安装类型 | :DIN Rail |
产品信息
| 类型 | Modular Terminal Blocks | 连接器性别 | F |
| 系列 | UK | 层数 | 1 |
| 兼容传感器最大尺寸 | :1.5mm² | ||
相关型号
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm

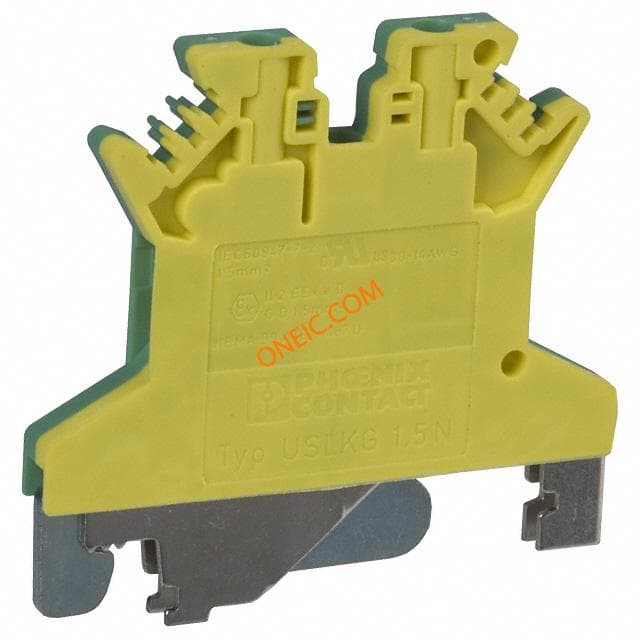

3005853
