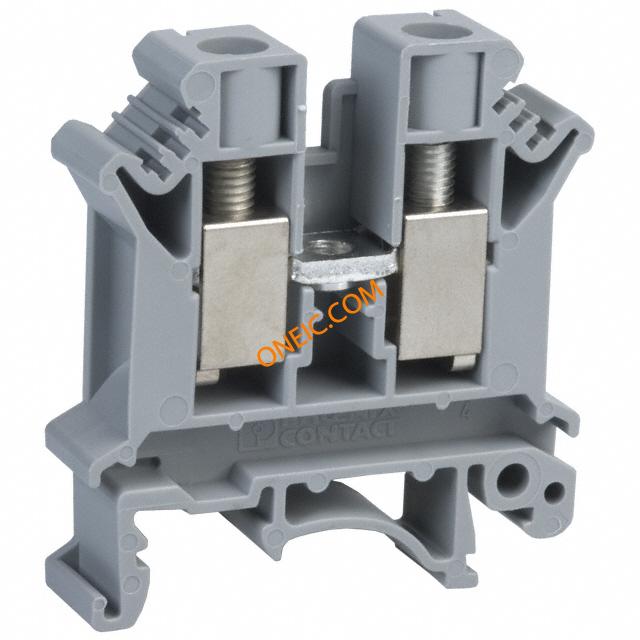

3005073
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック 10.2mm UNIV. BLOCK Conn Universal Terminal Blocks F 2 POS Screw ST 76A CONN TERM BLK FEED THRU 10.2MM Non-Fuse DIN Rail Terminal, 57A, 800V, Grey ,Screw Down Termination DIN Rail Terminal Blocks 10.2mm UNIV. BLOCK TERMINAL BLOCK, DIN, 10MM, GREY Conn;TermBlk;FeedThru;Screw;2;0.5-16sq.mm;20-6AWG;10.2mmW;Gray Phoenix Contact UK 系列 灰色 标准 DIN 导轨端子 , 76A, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 认证机构 | :EN 50281, EN 60979, IEC 60079 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 65A | UL电压 | 600V |
| 电流 - IEC | 57A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | :1 |
| 导体绞线 | :10mm² | 工作电压 | :800V |
| 最大额定电流 | 57A | 最小输入电压 | 800V |
| 最小供电电压 | 800V | ||
机械参数
| 颜色 | Gray | 深度 | 10.2 mm |
| 间距 | :10.2mm | 宽度 | 10.2 mm |
| 高度 | 52 mm | 长度 | 42.5 mm |
| 重量 | 0.592603 oz | 导线线规 | 20 → 6 AWG |
| 端接方式 | Screw | 安装类型 | Straight |
| 端子类型 | :Screw | 连接器类型 | :Terminal Block, DIN Rail |
| 接触镀层 | :- | 安装样式 | DIN Rail |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | Polyamide | 总长度 | 42.5 mm |
| 剥线长度（范围） | 10mm | 端子宽度 | 10.2mm |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 6-24 AWG |
| 线规或范围 - mm² | 0.5-16mm² | 第一连接器安装类型 | :DIN Rail |
产品信息
| 类型 | Universal Terminal Blocks | 连接器性别 | F |
| 系列 | UK | 层数 | 1 |
| 兼容传感器最大尺寸 | :10mm² | ||
文档与媒体
相关型号
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0203328
Phoenix Contact
Terminal Block Tools & Accessories EB 3-10 TERM BLOCK INSERTION BRIDGE 3POS Insertion Bridge, 3-Pos., Fully Insulated InsertionBridge;TermBlk;Universal;3;Gray;Angled
1205066
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers LG. SCREWDRIVER ScrewDriver, Bladed, Matches All Screw Terminal Blocks SCREWDRIVER SLOTTED 1X4MM 7.8" Bladed screwdriver SZS 1,0X4,0 SZS 1,0X4,0 VDE ScrewDriver;200mm;1mm;4mm;100mm;55g Phoenix Contact 1 mm 合金钢 一字刀头 人机工程学 螺丝刀 , 200 mm总长
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
0203137
Phoenix Contact
Terminal Block Tools & Accessories 10 POSITION BRIDGE Conn Jumper M 10 POS CONN TERM BLK INSERTION BRIDGE Phoenix Contact 0203137 Insertion Bridge Terminal Block, Series: EB InsertionBridge;TermBlk;Universal;10;Gray;Angled Phoenix Contact EB 系列 10 极跳片
3003020
Phoenix Contact
Terminal Block Tools & Accessories END COVER GRY Connector Accessories Cover Gray CONN TERM BLK END COVER Phoenix Contact 3003020 Cover Terminal Block, Series: D-UK END COVER, D-UK4/10 EndCover;Universal;TermBlk;Gray;42.5mmL;1.8mmW;35.9mmH End piece; Application: UK4,UK6; grey; polyamide Phoenix Contact D-UK 系列 端板
1053014:0001
Phoenix Contact
Terminal Block Tools & Accessories 10.2mm HZ STRIP 1-10 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT ZBMarkingStrip;TermBlk;Horiz;10.2mm;Nos1-10;White

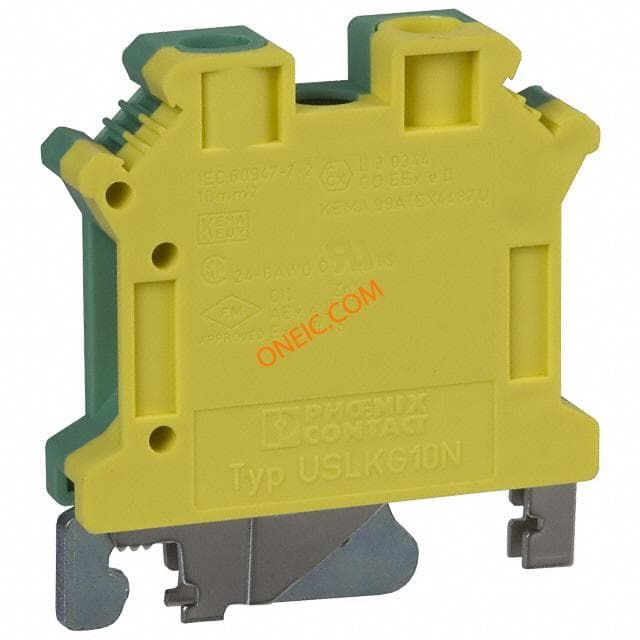

3003923
