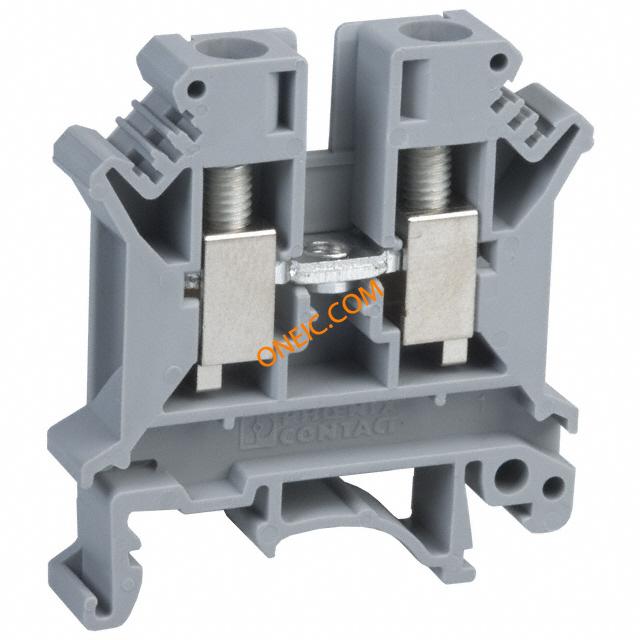

3004524
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 8.2mm UNIV.BLOCK Conn Universal Terminal Blocks F 2 POS Screw ST 57A CONN TERM BLK FEED THRU 8.2MM Non-Fuse DIN Rail Terminal, 41A, 800V, Grey ,Screw Down Termination Conn;TermBlk;FeedThru;ScrewClamp;2;0.2-10sq.mm;24-8AWG;8.2mmW;Gray Splice terminal: rail; ways:1; terminals:2; grey; 0.2÷6mm2; 800V Phoenix Contact UK 系列 灰色 标准 DIN 导轨端子 , 41A, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 安全类别 | ATEX | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 50A | UL电压 | 600V |
| 电流 - IEC | 41A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 1 |
| 连接器阻抗 | rail | 最大额定电流 | 41A |
| 最小输入电压 | 800V | ||
机械参数
| 颜色 | Gray | 深度 | 8.2 |
| 宽度 | 8.2 mm | 高度 | 52 mm |
| 长度 | 42.5 mm | 重量 | 0.487839 oz |
| 导线线规 | 24 → 8 AWG | 端接方式 | Screw |
| 基体材料 | polyamide | 安装类型 | Straight |
| 电缆材料 | 0.2 → 6mm² | 安装导轨 | TS32, TS35 |
| 安装样式 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 42.5 |
| 包装数量 | 28 | 剥线长度（范围） | 10mm |
| 端子宽度 | 8.2mm | 端接排数 | 螺钉拧紧 |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 8-26 AWG |
| 线规或范围 - mm² | 0.2-10mm² | 触点镀层厚度 - 柱 | 8.2mm |
产品信息
| 制造商 | 0.2-10mm² | SPG | 28 |
| 类型 | Universal Terminal Blocks | 连接器性别 | F |
| 系列 | UK | 单元数量 | 1 |
| 叠层数 | 单层 | 层数 | 1 |
