点击放大查看

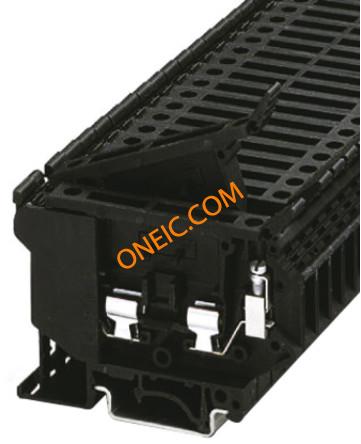

3004142
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 8.2mm HINGED 250V Fuse Terminal Block 6.3A 600V TERM BLOCK FUSE W/LEVER/LIGHT Fuse TB,width:8.2 mm,black Fuse modular terminal block UK5-HESILA 250 Fuse Terminal Blocks Conn;TermBlk;Fuse;1;2;26-10;600;6.3A;6kV;M3;0.5Nm;Cartridge;PA Phoenix Contact, UK 系列 黑色 带熔丝的 DIN 导轨端子 单层 2 连接, 5 x 20 mm, 5 x 25 mm, 5 x 30 mm 熔断器 |
| 分类 |
商业参数
| 交货时间 | 84 Days | 商标名 | CLIPLINE UK |
| 子类别 | Fuse Accessories | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | UL,CSA | 材料阻燃等级 | UL94 V-2 |
电气参数
| 线圈类型 | G | 电流 - UL | 12A |
| UL电压 | 600V | 电流 - IEC | 6.3A |
| IEC电压 | 500V | 额定电压 | 500 V |
| 极数 | 2Poles | 开关功能 | Fuse, Lever |
| 最大额定电流 | 6.3A | 保护电压（VP）（2416） | 6kV |
机械参数
| 颜色 | Black | 宽度 | 8.2 mm |
| 高度 | 56.5 mm | 长度 | 72.5 mm |
| 重量 | 0.712887 oz | 导线线规 | 24 → 12 AWG |
| 端接方式 | Screw | 安装样式 | DIN Rail |
| 主要材料 | DINRail | 剥线长度（范围） | 8mm |
| 端子宽度 | 8.2mm | 端接排数 | 螺钉 |
| 插针孔直径 | 8.2mm | 端接样式 | Screw |
| 连接器颜色 | Black | 触点数 | 2 |
| 交叉孔直径 | 0.2to4sq.mm | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 螺纹/螺钉/孔尺寸 | M3 |
| 线规或范围 - AWG | 10-26 AWG | 线规或范围 - mm² | 0.2-4mm² |
| 额定扭矩（oz-in / mNm） | 0.5Nm | 触点镀层厚度 - 柱 | 8.2mm |
产品信息
| 制造商 | 0.2-4mm² | 类型 | Fuse Terminal Block |
| 系列 | UK | 产品特性 | LED |
| 保险丝尺寸 | 5 x 20 mm, 5 x 25 mm, 5 x 30 mm | 保险丝类型 | 5mm x 20mm |
| CAD图纸 | 3D CAD 模型 | 主要用途 | LED |
| 断开类型 | Fuse, Lever | 行业别名 | UK 5-HESILA 250 |
| 叠层数 | 单层 | 层数 | 1 |
| 基础产品编号 | UK5-HESILA250 | ||
