点击放大查看

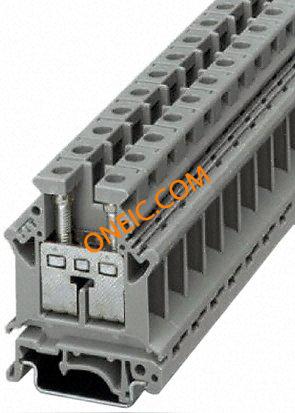

3003347
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UK 2 5 N 5.2mm FEED-THRU GRAY Conn Universal Terminal Blocks F 2 POS Screw ST 24A CONN TERM BLK FEED THRU 5.2MM Non-Fuse DIN Rail Terminal, 24A, 800V, Grey ,Screw Down Termination TERMINAL BLOCK, DIN, 2 WAY, 24-12 AWG Conn;TermBlk;FeedThru;Screw;2;0.2-4sq.mm;24-12AWG;5.2mmW;Gray Splice terminal: rail; ways:1; terminals:2; grey; 0.2÷2.5mm2; 800V Phoenix Contact UK 系列 灰色 标准 DIN 导轨端子 , 24A, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 300V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 1 |
| 导体绞线 | :2.5mm² | 连接器阻抗 | rail |
| 最大额定电流 | 24A | 最小输入电压 | 800V |
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 间距 | :5.2mm | 宽度 | 5.2 mm |
| 高度 | 42 mm | 长度 | 42.5 mm |
| 重量 | 3.307 lbs | 导线线规 | 24 → 12 AWG |
| 端接方式 | Screw | 基体材料 | polyamide |
| 安装类型 | Straight | 连接器类型 | :Terminal Block, DIN Rail |
| 接触镀层 | :- | 安装导轨 | TS32, TS35 |
| 安装样式 | DIN Rail | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 总长度 | 42.5 | 包装数量 | 50 |
| 剥线长度（范围） | 7mm | 端子宽度 | 5.2mm |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.2-4mm² | 第一连接器安装类型 | :DIN Rail |
产品信息
| SPG | 50 | 类型 | Universal Terminal Blocks |
| 连接器性别 | F | 系列 | UK |
| 单元数量 | 1 | 层数 | 1 |
