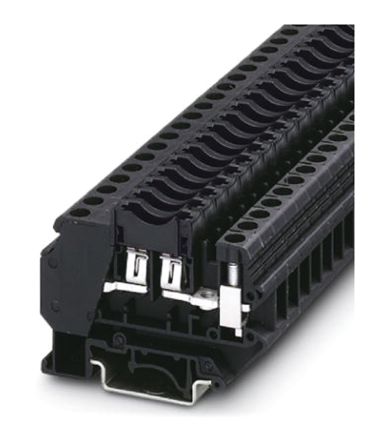

点击放大查看
3001939
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Fuse Terminal Block 30A 250V Screw DIN Rail CONN TERM BLOCK DIN Rail Terminal Blocks UK 6-FSI/C-LED60 UK6-FSI/C-LED60 Fused DIN Rail Terminal |
| 分类 |
商业参数
| 交货时间 | 27 Days | 商标名 | CLIPLINE UK |
| 其他名称 | UK 6-FSI/C-LED60 | 子类别 | Fuse Accessories |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 300V |
| 电流 - IEC | 30A | IEC电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 8.2 |
| 高度 | 59.5 | 总长度 | 64 |
| 剥线长度（范围） | 10mm | 端子宽度 | 8.2mm |
| 端接样式 | Screw | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 8-26 AWG |
| 线规或范围 - mm² | 0.2-10mm² | ||
产品信息
| 类型 | Fuse Terminal Block | 系列 | UK |
| 产品特性 | LED | 保险丝类型 | Blade, C |
| 断开类型 | Fuse, Removable Plug | 层数 | 1 |
