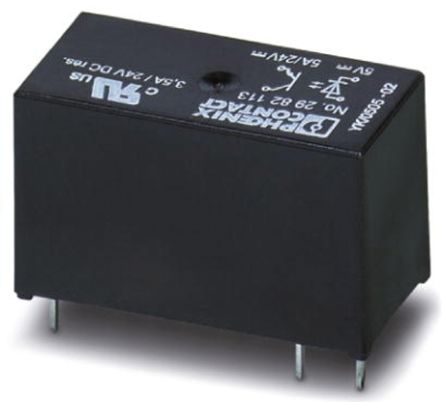

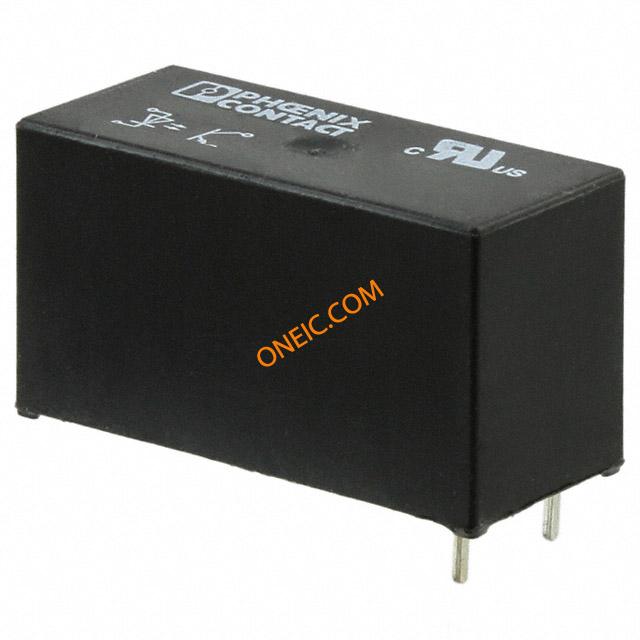

2982100
| 制造商 | |
| 描述 | Solid State Relays - PCB Mount OPT-24DC/24DC/5 OptoCoupler Transistor-OUT 1-CH 4-Pin DIP OPTOCOUPLER 24VDC 5A OPT-24DC/ 24DC/ 5 PLUGGABLEMINIATUREOPTOCOUPLERSVDC5A Pluggableminiatureoptocouplers,input:24VDC,output:3-33VDC/5A Phoenix Contact 光耦合器 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | INTERFACE Relay |
| 子类别 | OptoCoupler | 产品类别 | Solid State Relays - PCB Mount |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 输出端 | Phototransistor | 电路 | SPST-NO (1 Form A) |
| 输出类型 | DC | 负载电流 | 5A |
| 负载电压 | 3 ~ 33 V | 额定电压 | 24 |
| 供电电压 | 24 VDC | 通道数量 | 1 |
| 最大额定电流 | 5 A | 最小输入电压 | 24VDC |
| 最小供电电压 | 3 VDC to 33 VDC | ||
机械参数
| 宽度 | 12.7 | 重量 | 0.379548 oz |
| 包装方式 | Bulk | 触点形式 | 1 Form A (SPST-NO) |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 封装形式 | Module | 总长度 | 29 |
| 端接样式 | PC Pin | 位数 | 4 |
| 外壳尺寸-插件 | 15.7 | ||
产品信息
| 系列 | OPT | 功能 | Y |
| 继电器类型 | Relay | 产品子类型 | PCB Mount |
| 行业别名 | OPT-24DC/24DC/5 | 印刷电路板数量 | 4 |
环境参数
| 工作温度 | + 60 C | ||
