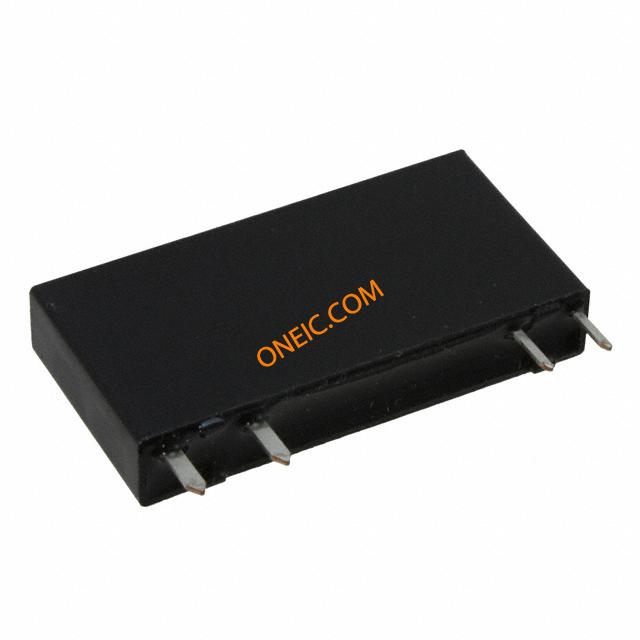

点击放大查看
2966605
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Solid State Relays - PCB Mount OPT-60DC/24DC/2 Relay SSR 3mA 60V DC-IN 3A 33V DC-OUT 4-Pin PLUGGABLE MINI OPTOCOUPLER 60VDC OPT-60DC/ 24DC/ 2 Pluggable miniature optocouplers, power optocouplers, input: 60 V DC, output: 3-33 V DC/3 A PLUGGABLEMINIATUREOPTOCOUPLERS |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | INTERFACE Relay |
| 子类别 | Solid State Relay | 标准包装规格 | 10 |
| 产品类别 | Solid State Relays - PCB Mount | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电路 | SPST-NO (1 Form A) | 输入类型 | DC |
| 输出类型 | DC | 负载电流 | 3A |
| 开启时间 | 0.04(Typ) | 负载电压 | 3 ~ 33 V |
| 额定电压 | 60(Typ) | 输出电流 | 3 |
| 最小输入电压 | 60VDC | 输出电压（最大） | 33 |
| 输入偏置电流（最大） | 3(Typ) | ||
机械参数
| 宽度 | 5 | 重量 | 0.191185 oz |
| 包装方式 | Bulk | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 封装形式 | 4-SIP |
| 总长度 | 28 | 端接样式 | Plug In |
| 位数 | 4 | 外壳尺寸-插件 | 15 |
产品信息
| 系列 | OPT | 继电器类型 | Relay |
| 行业别名 | OPT-60DC/24DC/2 | 印刷电路板数量 | 4 |
环境参数
| 工作温度 | 60 | ||
