2961312
| 制造商 | |

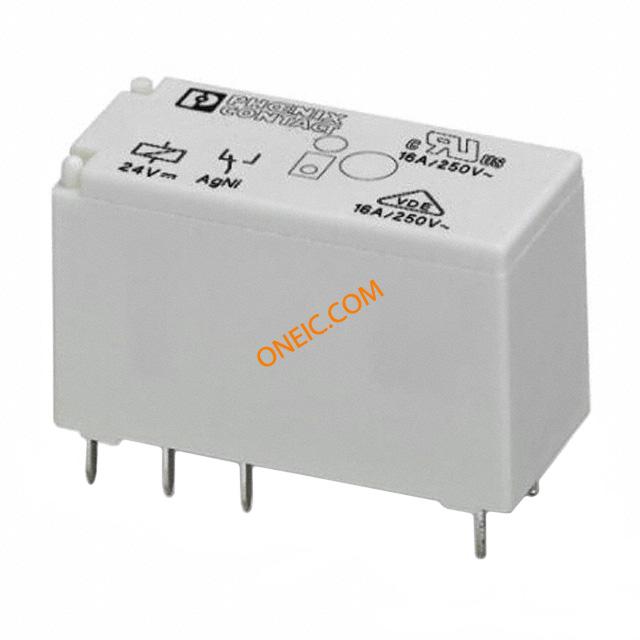

| 描述 | General Purpose Relays REL-MR-24DC/21HC REPLACEMENT RELAY Electromechanical Relay SPDT 16A 24VDC 1.44KOhm Through Hole RELAY GEN PURPOSE SPDT 16A 24V MIN.RELAYS,1 PDT,24 V DC RELAY, 24VDC, 16A, SPDT, PCB Relay;E-Mech;Power;SPDT;Cur-Rtg16A;Ctrl-V24DC;Vol-Rtg250AC/DC;Plug-In |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | INTERFACE Relay |
| 子类别 | Electromechanical Relay | 产品类别 | General Purpose Relays |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | cULus,RoHS |
| 海关税号 | 85364190 | 抗辐射加固 | No |
电气参数
| 线圈类型 | Non Latching | 最大功率 | 384 W |
| 量程（°/s） | :- | 线圈电流 | 17 mA |
| 线圈电压 | 24V | 释放时间 | 3ms |
| 额定功率 | 4kVA | 可见输出 | No |
| 额定电压 | 250VAC/VDC | 线圈电阻 | 1440 Ohms |
| 推频（MHz/V） | No | 输出电流 | :16A |
| 供电电压 | 24 V | 开关电压 | 250VAC, 250VDC - Max |
| 额定交流电压 | 250 V | 开关电流 | 30 A |
| 二极管配置 | No | 最大额定电流 | 16A |
| 输出浪涌功率 | 4000 VA | 触点电压（最大） | :250V |
| 最大触点电流 | :16A | 最小输入电压 | 250 |
| 直流开关电压 | 250V dc | 平均正向功率 | 1.2 W |
| 触点额定电流 | 16A | 数字供电电压 | :250V |
| 供电电压 (Vcc/Vdd) | :250V | 直流反向电压（Vr）（最大） | 250 V |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | 额定交流电压（相对地/中性线） | :250V |
机械参数
| 密封 | Unsealed | 深度 | 15.7mm |
| 宽度 | :12.7mm | 高度 | 29mm |
| 长度 | 12.7mm | 重量 | 0.538281 oz |
| 包装方式 | Bulk | 端接方式 | Plug-In |
| 触点形式 | SPDT | 高度（最大） | :29mm |
| 安装类型 | Through Hole | 端子类型 | Through Hole |
| 安装样式 | Plug In | 封装形式 | DIP |
| 冷却的封装 | DIP | 触头材料 | Silver Nickel |
| 总长度 | 29 mm | 端接样式 | PC Pin |
| 触点数 | 8 | 接触件端接 | PCB |
| 位数 | 8 | 典型触点布局 | SPDT |
产品信息
| 类型 | Miniature Relay | 系列 | REL-MR |
| 功能 | Power | 继电器类型 | Non-Latching |
| 按下测试类型 | No | 行业别名 | REL-MR-24DC/21HC |
| 基础产品编号 | REL-MR-24DC/21HC | 应用细节 | Power |
| 适用产品/相关产品 | 2960630 | ||
环境参数
| 动作时间 | 7ms | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
2967620
Phoenix Contact
Industrial Relays PLC-RSC-24DC/21HC RELAY PN 651-2961312 Electromechanical Relay SPDT 10A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE SPDT 10A 24V Relay PLC-RSC- 24DC/21HC RELAY, PLC, SPDT, 24VDC, DIN, SCREW Relay;E-Mech;PLC;SPDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg250AC/DC;Screw 菲尼克斯(PHOENIX) 安全继电器
2833518
Phoenix Contact
Relay Sockets & Hardware RELAY SOCKET PR1 PR1-BSC2/2X21 Relay Socket For Miniature Power Relay Or Miniature Switching Relay RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series SOCKET, RELAY, FOR PR1 SERIES RELAYSOCKETPR1
2833521
Phoenix Contact
Relay Sockets & Hardware PR1-BSC3/2X21 CONNECTOR SOCKET RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series Conn Relay Socket SKT Screw Cable Mount RELAYSOCKETPR2
2912277
Phoenix Contact
Industrial Relays PLC-RSP- 24DC/21HC 24VDC 14MM Electromechanical Relay SPDT 30A 24VDC 1.33KOhm RELAY GEN PURPOSE SPDT 10A 24V Relay PLC-RSP- 24DC/21HC PLC-RSCRelayModules,SPDT,10Aat24VDC,SpringTerminalBase
2912280
Phoenix Contact
Industrial Relays PLC-RSP- 24UC/21HC Electromechanical Relay SPDT 10A 24VDC 24VAC DIN Rail DIN RAIL TERM BLOCK W/RELAY SPDT Relay PLC-RSP- 24UC/21HC PLCRELAY,INPUT24VAC/DC
2833534
Phoenix Contact
Relay Sockets & Hardware PR1 RELAY SKT FOR MINI POWER/SWITCHING Conn Relay Socket SKT 8 POS RELAY SKT SPDT OR DPDT DIN RAIL Relay socket PR1-BSP3/2X21 PR1-BSP3/2X21
2967646
Phoenix Contact
Industrial Relays PLC-RSC-48DC/21 HC Electromechanical Relay SPDT 10A 48VDC 2.4KOhm DIN Rail DIN RAIL TERM BLOCK W/RELAY SPDT Relay PLC-RSC- 48DC/21HC PLC-RSC-48DC/21HC
2967772
Phoenix Contact

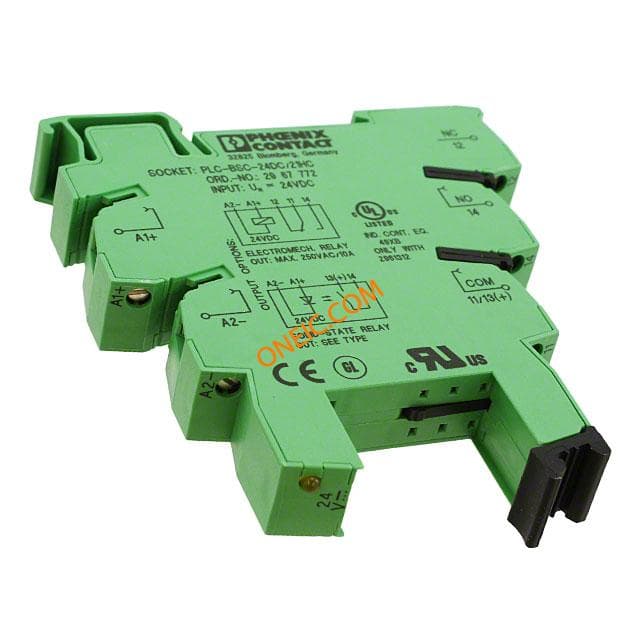

Relay Sockets & Hardware PLC-BSC-24DC/21HC Conn PLC Terminal Blocks F 5 POS Screw 14MM PLC-HC BASIC TERM BLOCK 24V Basic terminal block PLC-BSC- 24DC/21HC Socket,Relay;TerminalBlock(14mm),(InputVoltage24VAC/DC) Relay Socket Terminal Block 14mm 24 V
