点击放大查看

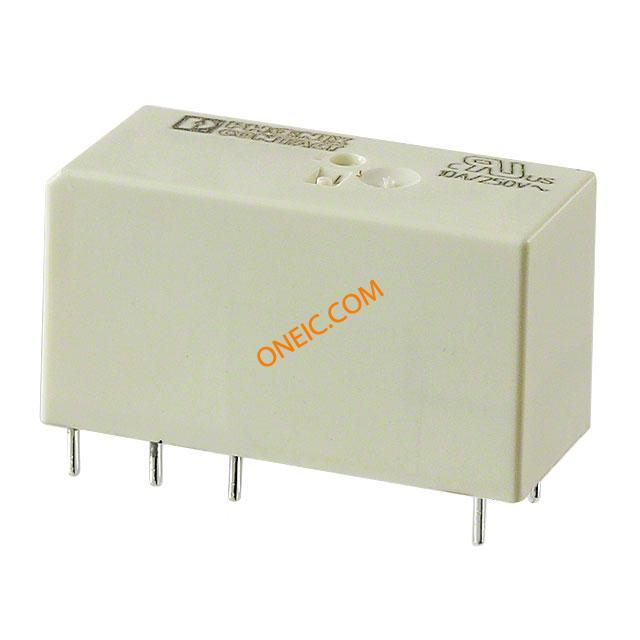

2961257
| 制造商 | |
| 描述 | General Purpose Relays REL-MR- 12DC/21 Electromechanical Relay DPDT 8A 12VDC 360Ohm Through Hole RELAY GEN PURPOSE DPDT 8A 12V MIN.RELAYS,2 PDT,12 V DC Relay;E-Mech;Power;DPDT;Cur-Rtg8A;Ctrl-V12VDC;Vol-Rtg250AC/DC;PCBMnt;8Pin |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | INTERFACE Relay |
| 子类别 | Electromechanical Relay | 产品类别 | General Purpose Relays |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 线圈类型 | Non Latching | 最大功率 | 190 W |
| 线圈电流 | 14 mA | 释放时间 | 3ms |
| 额定功率 | 2kVA | 可见输出 | No |
| 额定电压 | 250 | 线圈电阻 | 848 Ohms |
| 推频（MHz/V） | No | 供电电压 | 12 V |
| 开关电压 | 250VAC, 250VDC - Max | 开关电流 | 15 A |
| 二极管配置 | No | 最大额定电流 | 8 |
| 输出浪涌功率 | 2000 VA | 最小输入电压 | 250 |
| 直流开关电压 | 250V dc | 触点额定电流 | 8A |
机械参数
| 密封 | Unsealed | 深度 | 15.7mm |
| 高度 | 29mm | 长度 | 12.7mm |
| 重量 | 0.544277 oz | 包装方式 | Bulk |
| 触点形式 | 1 Form C (SPDT-BM) | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | Plug In |
| 冷却的封装 | DIP | 触头材料 | Silver Tin Oxide |
| 总长度 | 29 | 端接样式 | PC Pin |
| 触点数 | 8 | 典型触点布局 | DPDT |
产品信息
| 类型 | Interface | 系列 | REL-MR |
| 继电器类型 | Non-Latching | 行业别名 | REL-MR-12DC/21-21 |
| 基础产品编号 | REL-MR-12DC/21-21 | 应用细节 | Power |
环境参数
| 动作时间 | 7ms | 工作温度 | -40°C ~ 85°C |
