点击放大查看
2961202
| 制造商 | |
| 描述 | General Purpose Relays REL-MR-110DC/21-21 REPLACEMENT RELAY Electromechanical Relay DPDT 8A 110VDC 26.6KOhm Through Hole RELAY GEN PURPOSE DPDT 8A 110V Single relay REL-MR-110DC/21-21 Relay;E-Mech;Power;DPDT;Cur-Rtg8A;Ctrl-V110VDC;Vol-Rtg250AC/DC;PCBMnt;8Pin 双刀双掷 PCB（印刷电路板）安装 接口继电器模块, 8A, 110V dc |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | INTERFACE Relay |
| 子类别 | Electromechanical Relay | 产品类别 | General Purpose Relays |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
| 认证机构 | CRU 认证，cUL 认证，CULus，UL 认证，VDE | ||
电气参数
| 线圈类型 | Non Latching | 线圈电流 | 4.1 mA |
| 释放时间 | 3ms | 开启时间 | 7ms |
| 额定功率 | 2kVA | 可见输出 | No |
| 额定电压 | 250 | 线圈电阻 | 26600 Ohms |
| 输入阻抗 | 26600Ω | 极数 | 2 |
| 推频（MHz/V） | No | 供电电压 | 110 VDC |
| 开关电压 | 250VAC, 250VDC - Max | 二极管配置 | No |
| 最大额定电流 | 8A | 最小输入电压 | 250 |
| 触点额定电流 | 8 A | 输入偏置电流（最大） | 4.1mA |
机械参数
| 密封 | Unsealed | 深度 | 12.7mm |
| 宽度 | 12.7 mm | 高度 | 15.7 mm |
| 长度 | 29 mm | 重量 | 0.529815 oz |
| 包装方式 | Bulk | 触点形式 | 1 Form C (SPDT-BM) |
| 安装类型 | Through Hole | 安装样式 | Plug In |
| 冷却的封装 | DIP | 触头材料 | Silver Nickel |
| 总长度 | 29 | 尺寸/外形 | 29 x 12.7 x 15.7mm |
| 端接样式 | PC Pin | 触点数 | 8 |
| 接触件端接 | Screw | 典型触点布局 | DPDT |
产品信息
| 类型 | Miniature Relay | 系列 | REL-MR |
| 产品特性 | RT III 耐洗 | 继电器类型 | Non-Latching |
| 行业别名 | REL-MR-110DC/21-21 | 基础产品编号 | REL-MR-110DC/21-21 |
环境参数
| 动作时间 | 7ms | 工作温度 | -40°C ~ 85°C |
| 最高温度限值 | +85°C | ||
文档与媒体
相关型号
2967099
Phoenix Contact
Industrial Relays 2PDT 230V AC/220V DC PLC RELAY Electromechanical Relay DPDT 6A 220VDC 230VAC DIN Rail RELAY GEN PURPOSE DPDT 6A 230V DPDT DIN Rail Panel Mount Interface Relay Module, 250V RELAY, PLC, DPDT, 230VAC, DIN, SCREW PLC-RSCRelayModules,DPDT,6Aat230VACor220VDC
2833518
Phoenix Contact
Relay Sockets & Hardware RELAY SOCKET PR1 PR1-BSC2/2X21 Relay Socket For Miniature Power Relay Or Miniature Switching Relay RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series SOCKET, RELAY, FOR PR1 SERIES RELAYSOCKETPR1
2967086
Phoenix Contact
Industrial Relays PLC-RSC-120UC/21-21 RELAY PN 651-2961202 Electromechanical Relay DPDT 6A 110VDC 120VAC DIN Rail RELAY GEN PURPOSE DPDT 6A 120V DPDT DIN Rail Panel Mount Interface Relay Module, 250V Relay;E-Mech;PLC;DPDT;Cur-Rtg6A;Ctrl-V120/110AC/DC;Vol-Rtg250AC/DC;Screw 双刀双掷 DIN Rail 接口继电器模块, 110 V dc, 120 V ac
2833521
Phoenix Contact
Relay Sockets & Hardware PR1-BSC3/2X21 CONNECTOR SOCKET RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series Conn Relay Socket SKT Screw Cable Mount RELAYSOCKETPR2
2912484
Phoenix Contact
Relay Sockets & Hardware PLC-BSP-230UC/21-21 Conn PLC Terminal Blocks Cable Mount 14 MM PLC BASIC TERM BLOCK Basic terminal block PLC-BSP-230UC/21-21 PLC-BSP-230UC/21-21
2912549
Phoenix Contact
Industrial Relays PLC-RSP-120UC/21-21 Electromechanical Relay DPDT 6A 110VDC 120VAC DIN Rail RELAY GEN PURPOSE DPDT 6A 120V Relay PLC-RSP-120UC/21-21 RelayModule;PLCRelay;PLC-RSP-120UC/21-21
2833534
Phoenix Contact
Relay Sockets & Hardware PR1 RELAY SKT FOR MINI POWER/SWITCHING Conn Relay Socket SKT 8 POS RELAY SKT SPDT OR DPDT DIN RAIL Relay socket PR1-BSP3/2X21 PR1-BSP3/2X21

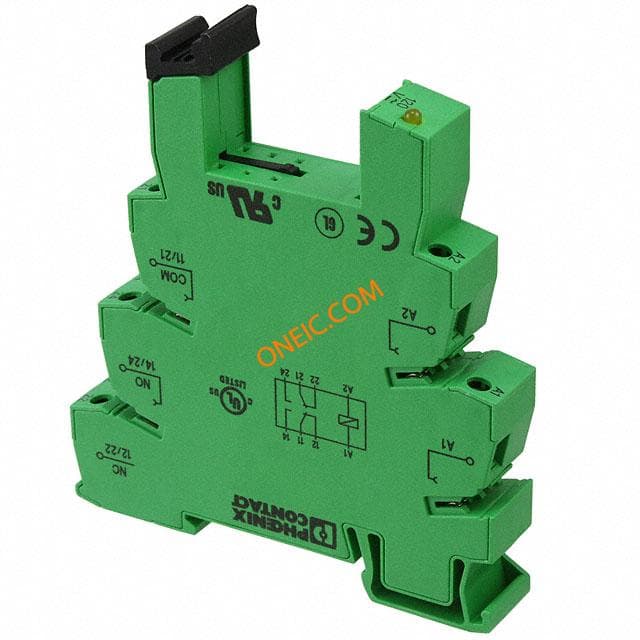

2967031
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-120UC/21-21 14MM PLC RELAY BASE Conn PLC Terminal Blocks Screw ST 6A 14MM PLC BASIC TERM BLOCK 24V Basic terminal block PLC-BSC-120UC/21-21 Socket,Relay;TerminalBlock(14mm),(InputVoltage120VAC/VDC) 14MMPLCTERMINALBLOCKS120VAC/DC

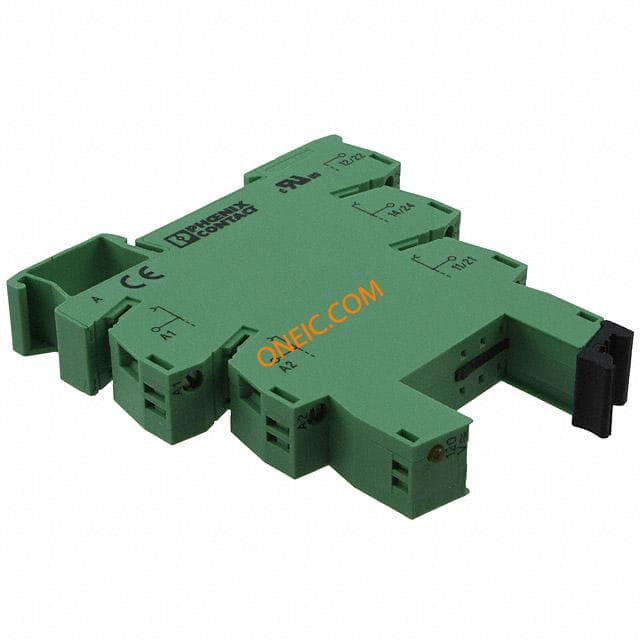

2980416
