点击放大查看

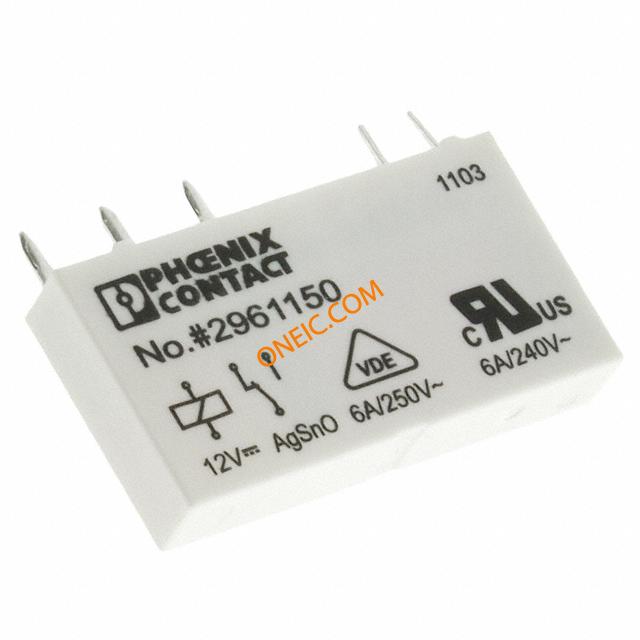

2961150
| 制造商 | |
| 描述 | General Purpose Relays REL-MR- 12DC/21 REPLACEMENT RELAY Electromechanical Relay SPDT 6A 12VDC 848Ohm Through Hole RELAY GEN PURPOSE SPDT 6A 12V Single relay REL-MR- 12DC/21 Relay;E-Mech;Power;SPDT;Cur-Rtg6A;Ctrl-V12VDC;Vol-Rtg250AC/DC;PCBMnt5Pin |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | INTERFACE Relay |
| 子类别 | Electromechanical Relay | 产品类别 | General Purpose Relays |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | cULus,CSA,RoHS | ||
电气参数
| 线圈类型 | Non Latching | 线圈电流 | 14 mA |
| 释放时间 | 2.5ms | 额定功率 | 1.5kVA |
| 可见输出 | No | 额定电压 | 250VAC/VDC |
| 线圈电阻 | 848 Ohms | 推频（MHz/V） | No |
| 供电电压 | 12 VDC | 开关电压 | 250VAC, 250VDC - Max |
| 二极管配置 | No | 最大额定电流 | 6A |
| 最小输入电压 | 250 | 触点额定电流 | 6 A |
| 驱动电压（最大Rds On，最小Rds On） | 12VAC/VDC | ||
机械参数
| 密封 | Unsealed | 深度 | 5 |
| 宽度 | 5 mm | 高度 | 15 mm |
| 长度 | 28 mm | 重量 | 0.231397 oz |
| 包装方式 | Bulk | 端接方式 | Plug-In |
| 触点形式 | 1 Form C (SPDT-BM) | 安装类型 | Through Hole |
| 安装样式 | Plug In | 冷却的封装 | SIP |
| 触头材料 | Silver | 总长度 | 28 |
| 端接样式 | Solder Pin | 触点数 | 5 |
| 接触件端接 | Screw | 典型触点布局 | SPDT |
产品信息
| 类型 | Miniature Relay | 系列 | REL-MR |
| 功能 | Power | 继电器类型 | Non-Latching |
| 行业别名 | REL-MR- 12DC/21 | 基础产品编号 | REL-MR-12DC/21 |
环境参数
| 动作时间 | 5ms | 工作温度 | -40°C ~ 85°C |
