点击放大查看

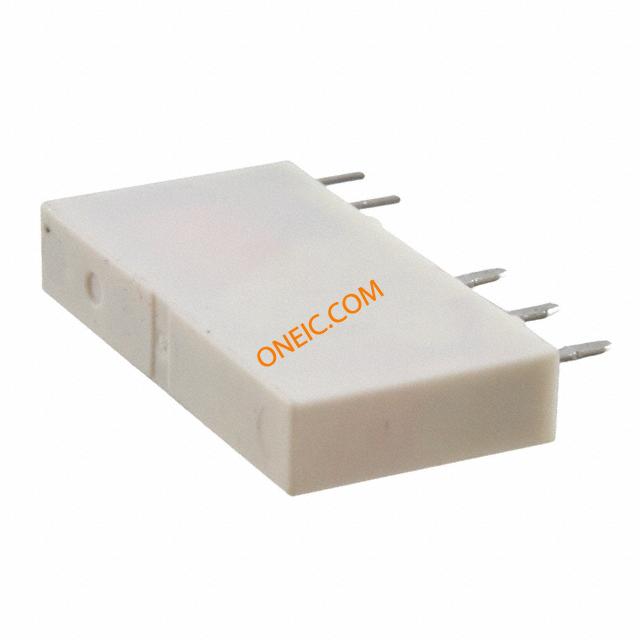

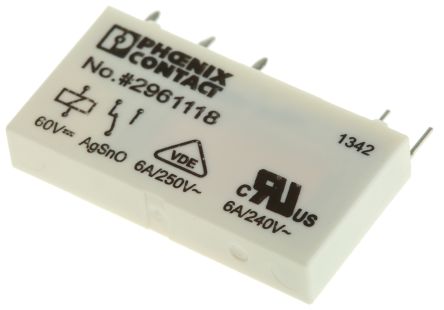

2961118
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | General Purpose Relays REL-MR- 60DC/21 REPLACEMENT RELAY Electromechanical Relay SPDT 6A 60VDC 20.5KOhm Through Hole RELAY GEN PURPOSE SPDT 6A 60V REL-MR- 60DC/21 RELAY, 60VDC, 6A, SPDT, PCB Relay;E-Mech;Power;SPDT;Cur-Rtg6A;Ctrl-V60DC;Vol-Rtg250AC/DC;PCBMnt;5Pin Phoenix Contact 2283870 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 60V dc |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | INTERFACE Relay |
| 子类别 | Electromechanical Relay | 产品类别 | General Purpose Relays |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | cULus,UL,CSA,RoHS |
| 海关税号 | 85364190 | ||
电气参数
| 线圈类型 | Non Latching | 量程（°/s） | :- |
| 线圈电流 | 3 mA | 释放时间 | 2.5ms |
| 额定功率 | 1.5kVA | 可见输出 | No |
| 额定电压 | 250VAC/VDC | 线圈电阻 | 20500 Ohms |
| 推频（MHz/V） | No | 输出电流 | :6A |
| 供电电压 | 60 V | 开关电压 | 250VAC, 250VDC - Max |
| 二极管配置 | No | 最大额定电流 | 6A |
| 输出浪涌功率 | 1.5 kVA | 触点电压（最大） | :250V |
| 最大触点电流 | :6A | 最小输入电压 | 250 |
| 平均正向功率 | 140 W | 触点额定电流 | 6A |
| 数字供电电压 | :250V | 供电电压 (Vcc/Vdd) | :250V |
| 驱动电压（最大Rds On，最小Rds On） | 60VDC | 额定交流电压（相对地/中性线） | :250V |
机械参数
| 密封 | Unsealed | 深度 | 5mm |
| 宽度 | :5mm | 高度 | 15mm |
| 长度 | 28mm | 重量 | 0.229281 oz |
| 包装方式 | Tube | 端接方式 | Plug-In |
| 触点形式 | 1 Form C (SPDT-BM) | 高度（最大） | :28mm |
| 安装类型 | Through Hole | 端子类型 | Through Hole |
| 安装样式 | Plug In | 引脚数 | 5 |
| 冷却的封装 | SIP | 触头材料 | Silver Tin Oxide |
| 总长度 | 28 | 尺寸/外形 | 28mmLx5mmWx15mmH |
| 端接样式 | PC Pin | 触点数 | 5 |
| 接触件端接 | PCB | 典型触点布局 | SPDT |
产品信息
| 类型 | Interface | 系列 | REL-MR |
| 功能 | Power | 继电器类型 | Non-Latching |
| 行业别名 | REL-MR- 60DC/21 | 基础产品编号 | REL-MR-60DC/21 |
| 应用细节 | Compact | ||
环境参数
| 动作时间 | 5ms | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85°C | ||
文档与媒体
相关型号
2966045
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-230UC/21 Conn PLC Terminal Blocks Screw ST RELAY SOCKET TERM BLOCK Basic terminal block PLC-BSC-230UC/21 Socket,Relay;TerminalBlock(6.2mm),(InputVoltage230VAC/VDC) Socket for interface relay 230VAC
2966524
Phoenix Contact
Industrial Relays PLC-RSP-120UC/21 Electromechanical Relay SPDT 6A 110VDC 120VAC DIN Rail RELAY GEN PURPOSE SPDT 6A 120V Relay PLC-RSP-120UC/21 PLC-RSCRelayModules,SPDT,6Aat120VACor110VDC,SpringTerminalBase 单刀双掷 DIN Rail 接口继电器模块, 6A
2980322
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-120UC/1/ SEN/SO46 Conn PLC Terminal Blocks Screw ST 6.2MM PLC SENSOR TERM BLOCK 120V Basic terminal block PLC-BSC-120UC/ 1/SEN/SO46 6.2MMPLCACTUATORBASICTERMINALBLOCK PLCsensorbasicterminalblocks(withoutrelay)120VAC/DC
2966074
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-120UC/1/SEN Conn PLC Terminal Blocks F Screw 6.2MM PLC SENSOR TERM BLOCK 120V Basic terminal block PLC-BSC-120UC/ 1/SEN 6.2 mm PLC sensor basic terminal blocks with screw connection method, input voltage 120 V AC/DC(without relay or optocoupler) PLC-BSC-120UC/1/SEN
2967167
Phoenix Contact
Relay Sockets & Hardware PLC-BSP-120UC/21 Conn PLC Terminal Blocks F RELAY SOCKET TERM BLOCK Basic terminal block PLC-BSP-120UC/21 6.2 mm PLC basic terminal blocks with spring-cage connection method, input voltage 120 V AC/DC(without relay or optocoupler) Socket,Relay;TerminalBlock(6.2mm),(InputVoltage120VAC/VDC)
2980335
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-23OUC/21SO46 Conn PLC Terminal Blocks Screw ST 6.2 MM PLC BASIC TERMINAL BLOCKS Basic terminal block PLC-BSC-230UC/21/SO46 6.2 mm PLC basic terminal blocks with screw connection method and integrated RCZ filter against interference voltages and currents on ... 6.2 mm PLC basic terminal blocks with screw connection method and integrated RCZ filter against interference voltages and currents on the control side, input voltage 230 V AC/DC(without relay or optocoupler) PLC-BSC-230UC/21/SO46
2980021
Phoenix Contact
Industrial Relays PLC-RSC 125DC/21 Electromechanical Relay SPDT 6A 125VDC DIN Rail RELAY GEN PURPOSE SPDT 6A 125V Relay PLC-RSC-125DC/21 PLC-RSC125DC/21
2966207
Phoenix Contact
Industrial Relays PLC-RSC-230UC/21 Electromechanical Relay SPDT 6A 220VDC 230VAC DIN Rail RELAY GEN PURPOSE SPDT 6A 230V SPDT DIN Rail Panel Mount Interface Relay Module, 250V RELAY, PLC, SPDT, 230VAC, DIN, SCREW PLC-RSCRelayModules,SPDT,6Aat230VACor220VDC 单刀双掷 DIN Rail 接口继电器模块, 220 V dc, 230 V ac
2966197
Phoenix Contact
Industrial Relays PLC-RSC-120UC/21 RELAY PN 651-2961118 Electromechanical Relay SPDT 6A 110VDC 120VAC 36.6KOhm DIN Rail RELAY GEN PURPOSE SPDT 6A 120V Relay PLC-RSC-120UC/21 RELAY, PLC, SPDT, 120VAC, DIN, SCREW Relay;E-Mech;PLC;SPDT;Cur-Rtg6A;Ctrl-V120/110AC/DC;Vol-Rtg250AC/DC;Screw 单刀双掷 底盘安装 接口继电器模块, 6A, 110 V dc, 120 V ac
2966249
Phoenix Contact
Industrial Relays PLC-RSC-120UC/1/SEN Electromechanical Relay SPST-NO 6A 110VDC 120VAC DIN Rail RELAY GEN PURPOSE SPST 6A 120V Relay PLC-RSC-120UC/ 1/SEN PLCSENSORRELAYBASETERMINALBLOCK
2966087
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-230UC/1/SEN Conn PLC Terminal Blocks F Screw 6.2MM PLC SENSOR BASIC TERM BLCK Basic terminal block PLC-BSC-230UC/ 1/SEN PLC-BSC-230UC/1/SEN
2966537
Phoenix Contact
Industrial Relays PLC-RSP-230UC/21 Electromechanical Relay SPDT 6A 220VDC 230VAC DIN Rail RELAY GEN PURPOSE SPDT 6A 230V Relay PLC-RSP-230UC/21 PLC-RSP-230UC/21

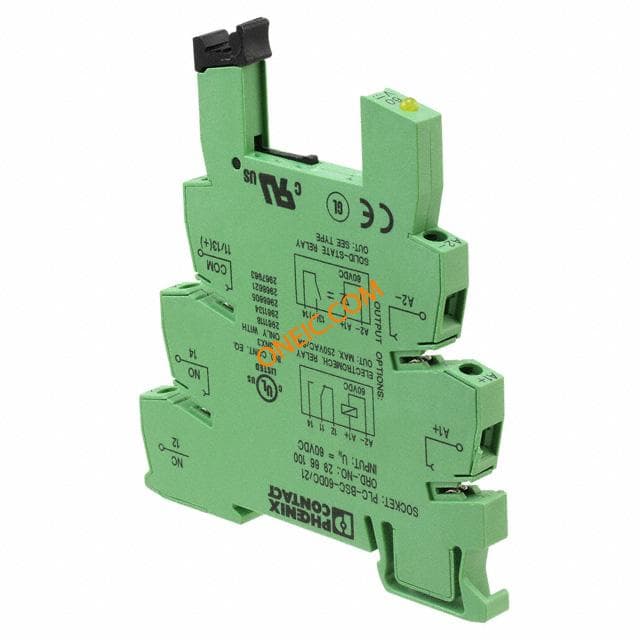

2966100
Phoenix Contact
Relay Sockets & Hardware PLC-BSC- 60DC/21 Conn PLC Terminal Blocks F Screw 6.2MM PLC BASIC TERM BLOCK Basic terminal block PLC-BSC- 60DC/21 Socket,Relay;TerminalBlock(6.2mm),(InputVoltage60VDC),ScrewTerm

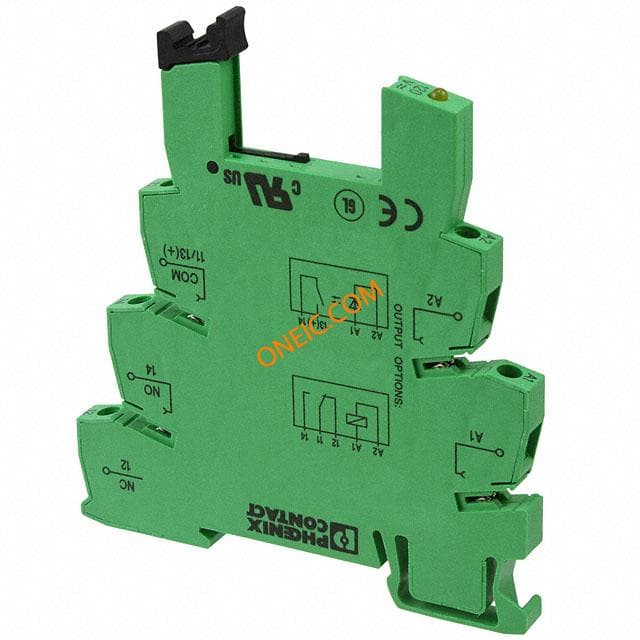

2980319
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-12OUC/21SO46 Conn PLC Terminal Blocks F 8 POS 6.2mm Screw 6.2MM PLC TERM BLOCK 120V Basic terminal block PLC-BSC-120UC/21/SO46 6.2mmPLCbasicterminalblocksscrewconnectionmethod120VAC/DC

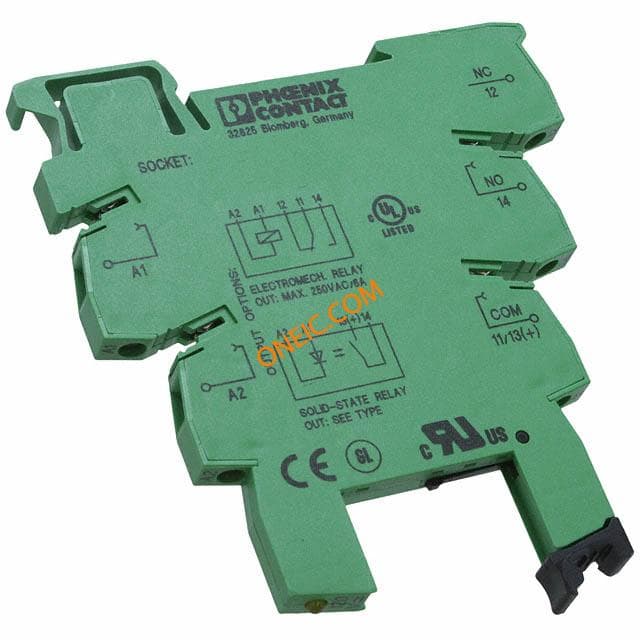

2966032
