点击放大查看

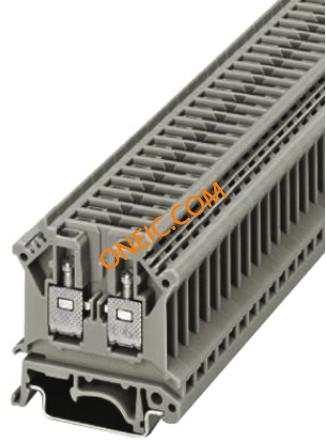

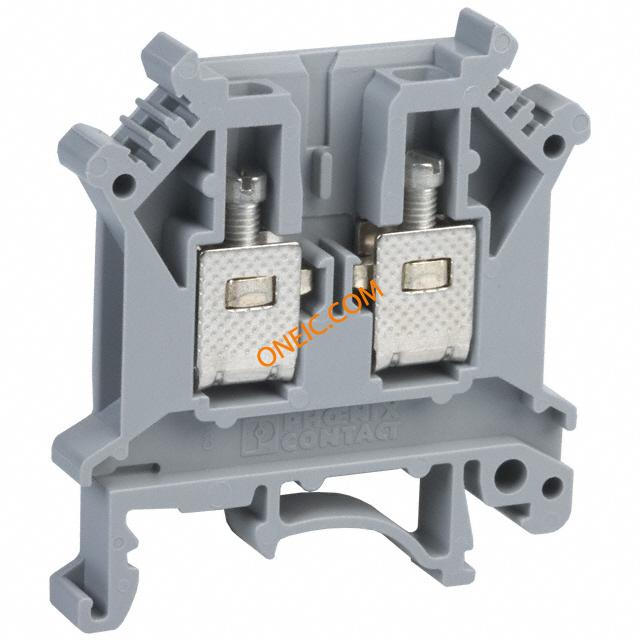

2812018
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック UK 4-TG Conn Terminal Block F 2 POS Screw ST 16A CONN BASE TERM BLK FOR FUSE PLUG TB,Screw connection,Width:6.2 mm,grey Disconnect and test disconnect terminal block UK4-TG DIN Rail Terminal Blocks UK 4-TG Conn;TermBlk;0.2to4sq.mm.;6.2mm;500V;16A;28-12AWG;Gray Splice terminal: rail; ways:1; terminals:2; grey; 0.2÷4mm2; 500V Phoenix Contact UK 系列 灰色 标准 DIN 导轨端子 , 16A, 500 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus,CSA | 材料阻燃等级 | UL94 V-2 |
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 16A | IEC电压 | 500V |
| 额定电压 | 500 V | 极数 | 2Poles |
| 开关功能 | Open | 连接器阻抗 | rail |
| 最大额定电流 | 16A | 最小输入电压 | 500V |
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 52 mm |
| 长度 | 42.5 mm | 重量 | 0.326284 oz |
| 导线线规 | 24 → 12 AWG | 端接方式 | Screw |
| 安装类型 | Straight | 安装导轨 | TS32, TS35 |
| 安装样式 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 42.5 |
| 包装数量 | 22 | 主要材料 | DINRail |
| 剥线长度（范围） | 9mm | 端子宽度 | 6.2mm |
| 端接排数 | 螺钉 | 插针孔直径 | 6.2mm |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 交叉孔直径 | 0.2to4sq.mm. |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-28 AWG | 线规或范围 - mm² | 0.2-4mm² |
| 触点镀层厚度 - 柱 | 6.2mm | ||
产品信息
| 制造商 | 0.2-4mm² | SPG | 22 |
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | UK | 断开类型 | Open |
| 单元数量 | 1 | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | UK4-TG |
