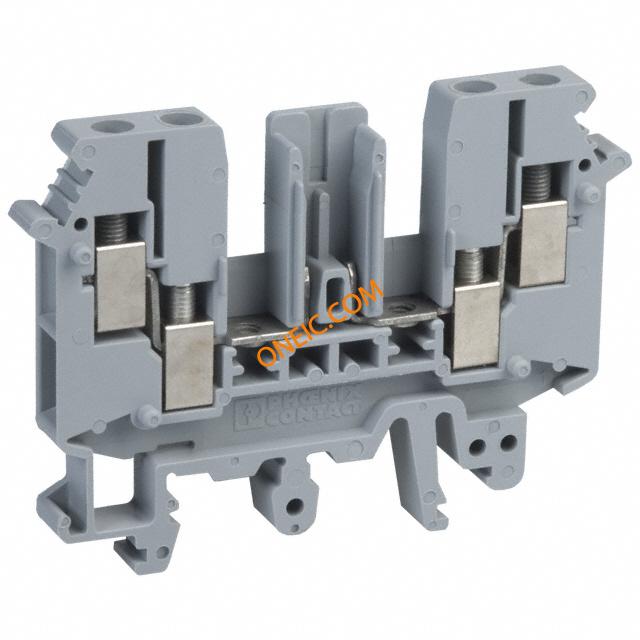

点击放大查看
2777014
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UDK 4-TG Conn Modular Terminal Blocks F 4 POS Screw ST 16A CONN TERMINAL BLOCK BASE 6.2MM Feed-through modular terminal block UDK 4-TG Conn;TermBlk;0.2to2.5sq.mm.;6.3mm;400V;16A;24-10AWG;Gray |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 商标名 | CLIPLINE UDK |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 认证机构 | cULus |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 电流 - UL | 15A | UL电压 | 300V |
| 电流 - IEC | 16A | IEC电压 | 400V |
| 额定电压 | 400 V | 极数 | 4Poles |
| 最大额定电流 | 16 A | 最小输入电压 | 400V |
| 最小供电电压 | 400V | ||
机械参数
| 颜色 | Gray | 深度 | 6.2 mm |
| 宽度 | 6.2 mm | 高度 | 52 mm |
| 长度 | 63.5 mm | 重量 | 0.516411 oz |
| 导线线规 | 24 | 端接方式 | Screw |
| 安装类型 | Straight | 排数 | 4 |
| 壳体材料 | Polyamide | 总长度 | 63.5 mm |
| 主要材料 | DINRail | 剥线长度（范围） | 8mm |
| 端子宽度 | 6.2mm | 插针孔直径 | 6.3mm |
| 端接样式 | Screw | 触点数 | 4 |
| 交叉孔直径 | 0.2to2.5sq.mm. | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 24-10 |
| 线规或范围 - mm² | 10 | ||
产品信息
| 类型 | Wire to Wire | 级别 | DoubleLevel |
| 连接器性别 | F | 系列 | UDK |
| 断开类型 | Open | 层数 | 1 |
| 基础产品编号 | UDK4-TG | ||
