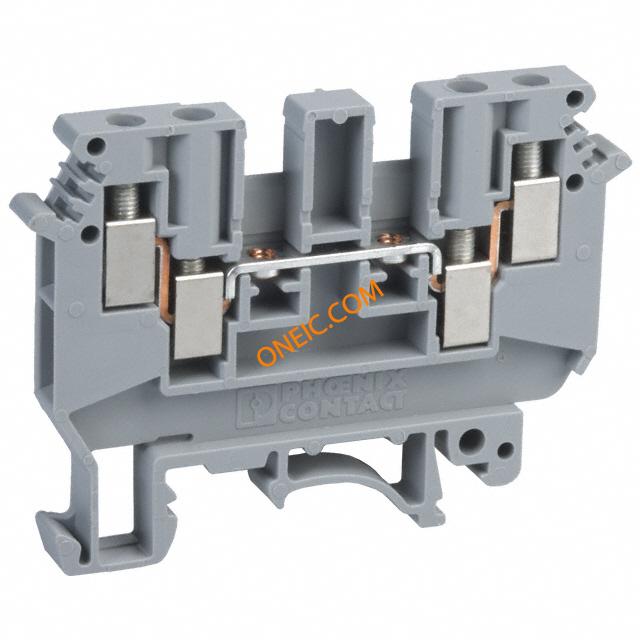

2775016
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UDK 4 Conn Terminal Block F 4 POS Screw 32A TERM BLOCK W/UNIV FOOT GRAY Non-Fuse DIN Rail Terminal, 32A, 630V, Grey ,Screw Down Termination Conn;TermBlk;DINRail;FeedThru;Screw;2lvl;4Conn;30-10AWG;Gray;6.2mmW Splice terminal: rail; ways:1; terminals:4; grey; 0.2÷4mm2; 32A Phoenix Contact UDK 系列 灰色 标准 DIN 导轨端子 , 32A, 630 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UDK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus,CSA | 材料阻燃等级 | UL94 V-2 |
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 630V |
| 测试电压 | 8kV | 额定电压 | 630 V |
| 极数 | 4Poles | 连接器阻抗 | rail |
| 最大额定电流 | 32A | 最小输入电压 | 690V |
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 52.5 mm |
| 长度 | 63.5 mm | 重量 | 0.540044 oz |
| 导线线规 | 30 → 10 AWG | 端接方式 | Screw |
| 基体材料 | polyamide | 安装类型 | screw terminal |
| 安装导轨 | TS32, TS35 | 排数 | 4 |
| 壳体材料 | Polyamide | 总长度 | 63.5 |
| 包装数量 | 50 | 主要材料 | DINRail |
| 剥线长度（范围） | 8mm | 端子宽度 | 6.2mm |
| 端接排数 | 螺钉拧紧 | 插针孔直径 | 6.2mm |
| 端接样式 | Screw | 导线剥线长度 | 8mm |
| 连接器颜色 | Grey | 触点数 | 4 |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-30 AWG | 线规或范围 - mm² | 0.2-6mm² |
| 触点镀层厚度 - 柱 | 6.2mm | ||
产品信息
| 制造商 | 0.2-6mm² | SPG | 50 |
| 类型 | Terminal Block | 级别 | DoubleLevel |
| 连接器性别 | F | 系列 | UDK |
| 单元数量 | 1 | 叠层数 | 双层 |
| 层数 | 1 | 基础产品编号 | UDK4 |
