2774017
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 6.2mm DBL LVL GRAY 26-10AWG UKK5 Conn Terminal Block F 4 POS Screw 32A CONN TERM BLK FEED THRU 6.2MM Conn;TermBlk;DBLLevel;Screw;4;24-12AWG;Gray; Splice terminal: rail; ways:2; terminals:4; grey; 0.2÷4mm2; 32A Double-level terminal block - UKK 5 |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 500V |
| 测试电压 | 8kV | 额定电压 | 500 V |
| 极数 | 2 | 连接器阻抗 | rail |
| 最大额定电流 | 32 A | 最小输入电压 | 500V |
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 67 mm |
| 长度 | 56 mm | 重量 | 0.543924 oz |
| 导线线规 | 24 | 端接方式 | Screw |
| 基体材料 | polyamide | 安装类型 | screw terminal |
| 安装导轨 | TS32, TS35 | 安装样式 | DIN Rail |
| 排数 | 4 | 壳体材料 | Polyamide |
| 总长度 | 56 | 包装数量 | 50 |
| 剥线长度（范围） | 8mm | 端子宽度 | 6.2mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 导线剥线长度 | 8mm | 连接器颜色 | grey |
| 触点数 | 4 | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 10-26 AWG |
| 线规或范围 - mm² | 0.2-4mm² | 触点镀层厚度 - 柱 | 6.2mm |
产品信息
| 制造商 | 0.2-4mm² | SPG | 50 |
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | UK | 单元数量 | 1 |
| 层数 | 2 | ||
文档与媒体
相关型号
1004115
Phoenix Contact
Terminal Block Tools & Accessories WS 3- 6 Warning Plate, With 2 Plastic Screws, Across 3 Terminal Blocks LABEL WARNING SIGN 6MM Warning label WS 3- 6 WARNINGPLATE,PITCH6MM

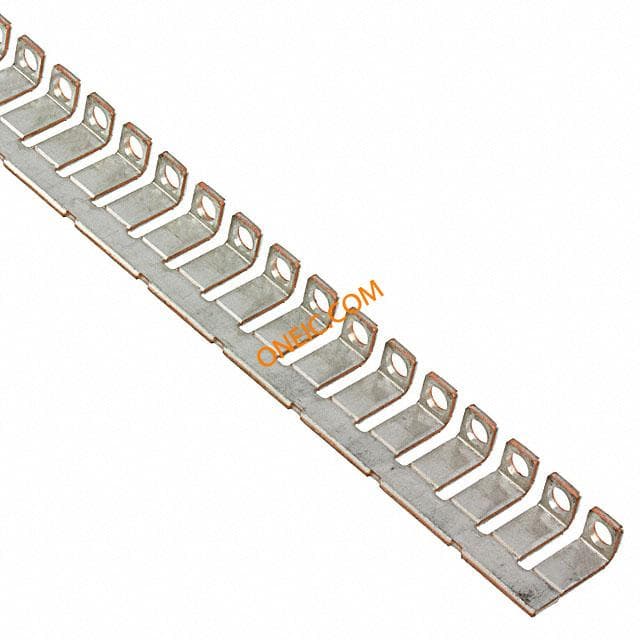

5029125
Phoenix Contact
Terminal Block Tools & Accessories LB 100-6 WITHOUT SCREWS Jumper CROSS CONNECTOR/BRIDGE Jumper LB 100-6BRUECKE OHNE SCHRAUB LB100-6BRUECKEOHNESCHRAUB Phoenix Contact
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm

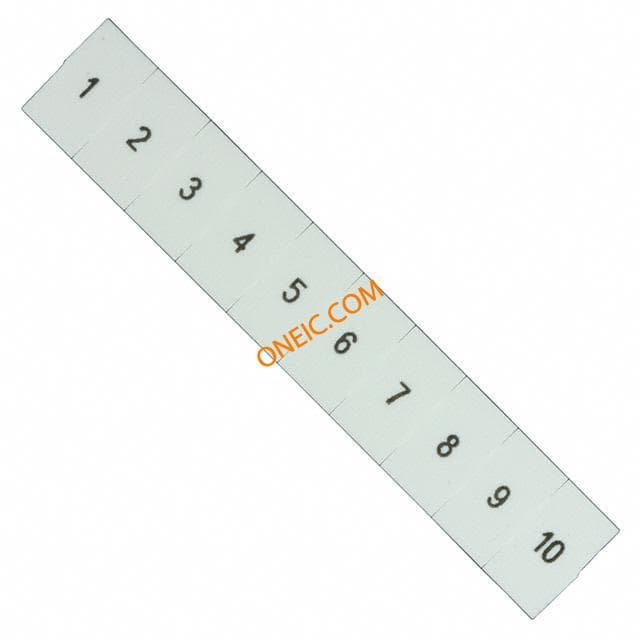

1051016:0001
