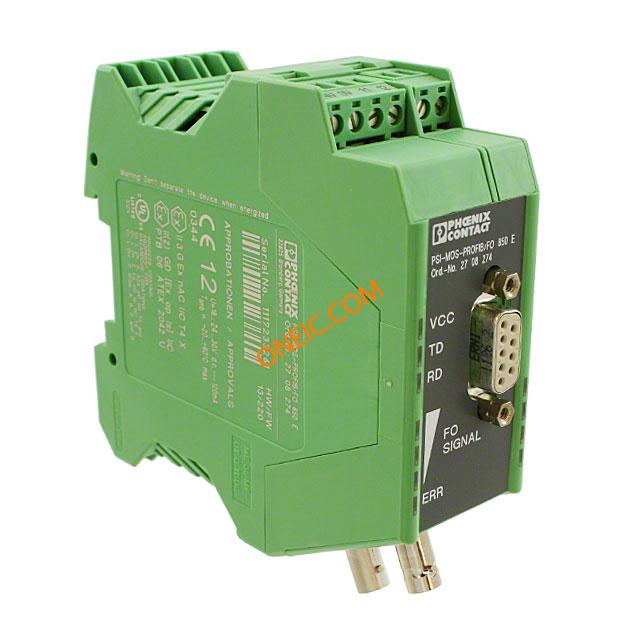

2708274
| 制造商 | |
| 描述 | Fiber Optic Transmitters, Receivers, Transceivers PSI-MOSPROFIB/FO850E FO Converter FIBER OPTIC CONVERTER DIN RAIL COMPACT POWER SUPPLY 3-PHASE 24 VDC 40A FO converters PSI-MOS-PROFIB/FO 850 E FO converter with integrated optical diagnosis, alarm contact, for PROFIBUS up to 12 Mbit/s, terminal equipment with an FO interface ... FO converter with integrated optical diagnosis, alarm contact, for PROFIBUS up to 12 Mbit/s, terminal equipment with an FO interface (BFOC), 850 nm, for fiber glass cable PSI-MOS-PROFIB/FO850E(ForProfibus,glassfiber) |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Converters | 交货时间 | 28 Days |
| 子类别 | Specialized Fiber Optic | 标准包装规格 | 1 |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 数据速率 | 12 MBd | 波长 | 850 nm |
| 输出类型 | Current, Voltage | 输出范围 | 0.46 A, 42 Vdc, 60 Vac |
| 供电电压 | 18 → 30 Vdc | 峰值波长 | 850 nm |
机械参数
| 宽度 | 35 | 重量 | 6.524977 oz |
| 安装类型 | DIN Rail | 连接器类型 | ST |
| 安装样式 | DIN Rail | 封装形式 | 106 mm x 35 mm x 99 mm |
| 总长度 | 105 | 外壳尺寸-插件 | 99 |
产品信息
| 系列 | * | 光纤类型 | Multimode |
| 行业别名 | PSI-MOS-PROFIB/FO 850 E | 基础产品编号 | PSI-MOS-PROFIB/FO850E |
| 应用细节 | PROFIBUS | ||
环境参数
| 工作温度 | +60°C | ||
