点击放大查看
2130169
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UHV 50-KH/KH Conn Universal Terminal Blocks F 2 POS Screw 150A CONN TERM BLOCK Feed-through modular terminal block UHV 50-KH/KH Universal terminal block with screw connection, cross section: 25 - 50 mm², AWG: 6 - 1/0, width: 32 mm, color: ... Universal terminal block with screw connection, cross section: 25 - 50 mm², AWG: 6 - 1/0, width: 32 mm, color: gray UHV50-KH/KH |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 其他名称 | UHV 50-KH/KH |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 HB | ||
电气参数
| 电流 - UL | 150A | UL电压 | 600V |
| 电流 - IEC | 150A | IEC电压 | 1000V |
| 额定电压 | 1000 V | 最大额定电流 | 150 A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 32 |
| 宽度 | 32 mm | 高度 | 78 |
| 长度 | 113.5 mm | 重量 | 6 oz |
| 导线线规 | 6 | 端接方式 | Screw |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 113.5 | 端子宽度 | 32.0mm |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon, Glass Filled |
| 线规或范围 - AWG | 6-1/0 | 线规或范围 - mm² | 1/0 |
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 层数 | 1 | ||
文档与媒体
相关型号
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0824605
Phoenix Contact
Terminal Block Tools & Accessories UC-TM 10 CUS UNICARD SHEETS 1 ROLL=48 LABELS Terminal Block Tools & Accessories UC-TM 10 CUS 1 sheet is 1 piece UC-TM10CUS
2130402
Phoenix Contact
Terminal Block Tools & Accessories UHV -TP1 Separating Plate, Color Gray SEPARATING PLATE GRAY Separating plate UHV -TP1 UHV-TP1
0824941
Phoenix Contact
Terminal Block Tools & Accessories ZB 10 CUS ZACK STRIP Terminal Block Tools & Accessories ZB 10 CUS 1 strip is 1 piece Terminalblockmarking,canbelabeledaspercustomerspecifications Terminal Marker
0818069
Phoenix Contact
Unspecified Tools & Accessories UC-TM 10 UNICARD 48 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=48 LABELS Terminal Block Tools & Accessories UC-TM 10 UNICARD 48 SECTION MarkerCard;TermBlk;10.2mm;48labelspercard;white
1201662
Phoenix Contact
ターミナルブロック・ツールとアクセサリ END BRACKET Connector Accessories End Bracket for End Support Straight Aluminum Silver DINRAIL END BRACKET W/2 SCREWS Phoenix Contact 1201662 End Clamp Terminal Block, Series: E/AL-NS End bracket E/AL-NS 35 Terminal Block Tools & Accessories END BRACKET CONNECTOR ACCESSORIES EndBracket;TermBlk;DINRail;10mm;59mmL;forUKH50-UKH240 Phoenix Contact E/AL-NS 系列 端夹

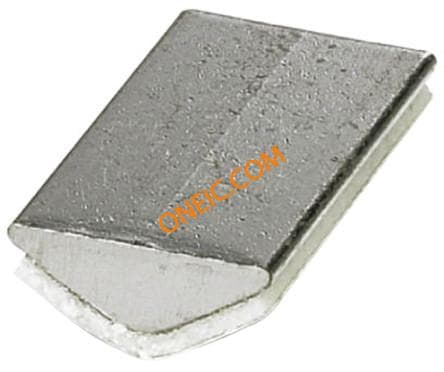

3009228
