点击放大查看

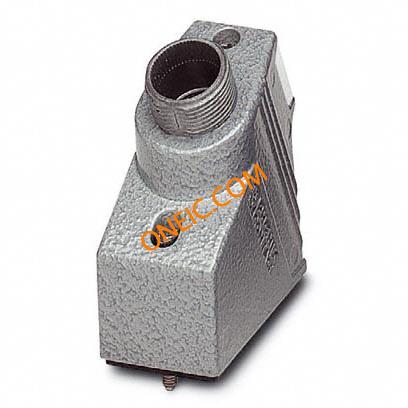

1884898
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Cable Mounting & Accessories VC-MP-T1-Z Cable Accessories Sleeve Zinc Die Cast Powder METAL SLEEVE HOUSING Housing VC-MP-T1-Z VC-MP-T1-Z |
| 分类 |
商业参数
| 商标名 | PLUSCON Device | 产品类别 | Cable Mounting & Accessories |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | 66 mm x 33 mm x 71 mm | 长度 | 66 mm |
| 重量 | 8.309840 oz | 材料（通用） | Zinc Die Cast |
| 包装方式 | Bulk | 螺纹尺寸 | PG16 |
| 基体材料 | Zinc Die Cast | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体镀层 | Powder |
| 壳体材料 | Zinc, Die Cast | 尺寸/外形 | 2.598" L x 1.299" W x 2.795" H (66.00mm x 33.00mm x 70.99mm) |
产品信息
| 类型 | Housing, Sleeve, Metal | 样式 | Thru Type |
| 锁定位置 | Screw Locks on Hood | ||
环境参数
| 防护等级 | IP65/66/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
