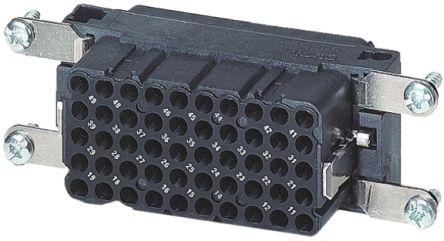

点击放大查看
1884791
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ VC-D2-BU30-PE-R Connector Accessories Carier FEMALE CONTACT CARRIER Contact insert, female, 30 pos + PE Contact insert VC-D2-BU30-PE-R Heavy Duty Power Connectors VC-D2-BU30-PE-R VC-D2-BU30-PE-R Phoenix Contact Variocon 系列 30针 P+E极 插座 电源连接器 |
| 分类 |
商业参数
| 交货时间 | 26 Days | 商标名 | PLUSCON Device |
| 子类别 | Connector Accessories | 标准包装规格 | 1 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 4A |
机械参数
| 重量 | 1.458931 oz | 包装方式 | Bulk |
| 螺纹尺寸 | M3, M4 | 触头类型 | CK 1.6-BR, ER |
| 连接器类型 | Insert without Contacts | 壳体材料 | Polyamide (PA), Nylon, Glass Filled |
| 端接样式 | Crimp | 触点数 | 30 |
| 位数 | 30 | ||
产品信息
| 类型 | Carrier | 连接器性别 | Non-Gendered |
| 系列 | VC-D | 极性 | P+E |
| 极数格式 | P+E | 附件类型 | Contact Carrier |
| 行业别名 | VC-D2-BU30-PE-R | 适用产品/相关产品 | Heavy Duty Power Connector |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
