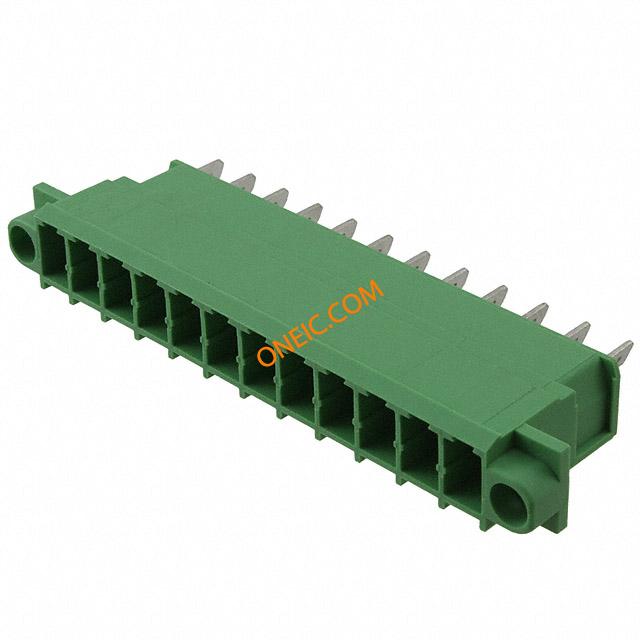

1861251
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks DFK-PC 4/12-G-7.62-F Conn Shrouded Header HDR 12 POS 7.62mm Solder Lug ST Panel Mount PLUG 15A 500V 7.62MM 12POS Header for PCB plug connector DFK-PC 4/12-G-7,62-FS4,8 DFK-PC4/12-G-762-FS48 Phoenix Contact COMBICON DFK-PC 系列 7.62mm节距 12路 印刷电路板接线端子块, 滑扣、焊接端接, 15A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Headers | 商标名 | COMBICON Power |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 300V |
| 额定电压 | 400 V | 最大额定电流 | 15 A |
| 最小输入电压 | 160V | ||
机械参数
| 颜色 | Gray | 间距 | 7.62 mm |
| 宽度 | 4.200" (106.66mm) | 重量 | 1 oz |
| 端接方式 | Solder Lug | 安装类型 | Panel Mount |
| 接触镀层 | Tin | 安装样式 | Panel / Box - Feed Through |
| 排数 | 1 | 面板厚度 | 0.039 ~ 0.197" (1.0 ~ 5.0mm) |
| 触头材料 | 锡 | 壳体材料 | Polyamide |
| 总长度 | 106.66 | 面板安装类型 | Screw Mount - Front Flange |
| 端接排数 | 滑扣、焊接 | 触点数 | 12 |
| 线规或范围 - AWG | 24-10 | 后面板接线方式 | Quick Connect - 0.187" (4.75mm), Solder Eyelet |
| 前面板接线方式 | Header, Male Pins | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | HDR |
| 系列 | DFK-PC | 产品特性 | Threaded Mating Lock |
| 层数 | 1 | 每层位数 | 12 |
