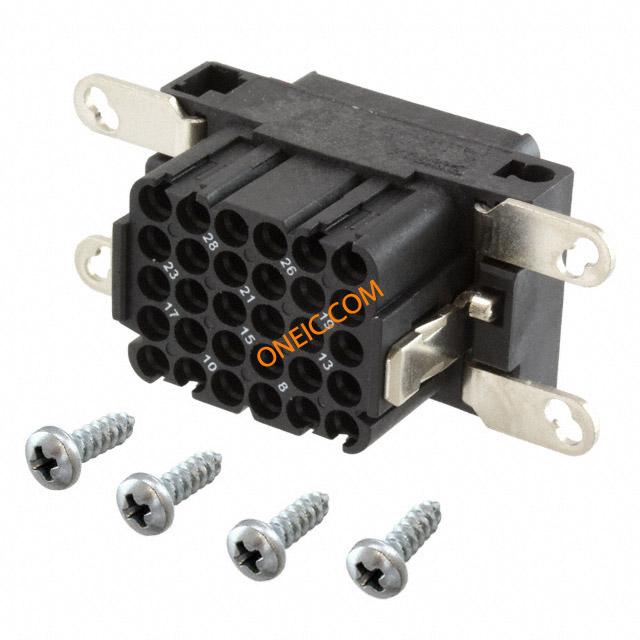

点击放大查看
1855063
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ VC-D2-BU30-PE Conn Housing PL 3 POS Crimp ST Panel Mount FML CONTACT CARRIER 30POS Contact insert VC-D2-BU30-PE Heavy Duty Power Connectors VC-D2-BU30-PE FEMALECONTACTCARRIER30-POS.+PE |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | PLUSCON Device |
| 子类别 | Connector Discrete Wire Housing | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 4A |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 33 |
| 高度 | 25.4 | 重量 | 1.430712 oz |
| 包装方式 | Bulk | 导线线规 | 16-22 |
| 触头类型 | CK 1.6-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 排数 | 5 |
| 插入力 | Female | 壳体材料 | Polyamide |
| 总长度 | 57.8 | 端接样式 | Crimp |
| 触点数 | 3 | 位数 | 30 |
| 线规或范围 - AWG | 22-16 | ||
产品信息
| 类型 | Housing | 连接器性别 | PL |
| 系列 | Variocon | 产品子类型 | Contacts |
| 行业别名 | VC-D2-BU30-PE | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
