1852956
| 制造商 | Phoenix Contact GmbH & Co. KG |

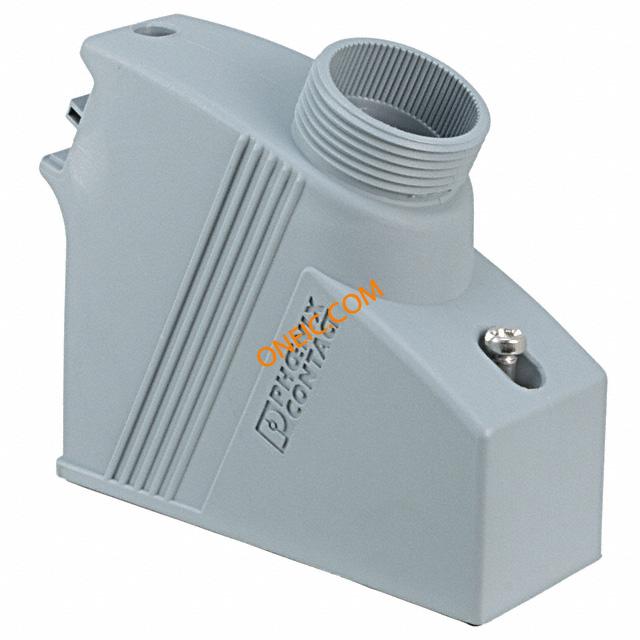

| 描述 | Cable Mounting & Accessories VC-K-T3-Z Cable Accessories Sleeve Polyamide CONN HOUSING LOC SCREW PLAS Housing VC-K-T3-Z SleeveHousing;Plastic;lockingscrewswithcylindricalhead |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | PLUSCON Device |
| 子类别 | Cable Accessories | 产品类别 | Cable Mounting & Accessories |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | 89 mm x 75 mm | 长度 | 89 mm |
| 重量 | 2.403215 oz | 材料（通用） | Polyamide (PA) |
| 包装方式 | Bulk | 螺纹尺寸 | PG21 |
| 基体材料 | Polyamide | 连接器类型 | Hood |
| 壳体材料 | Polyamide (PA), Nylon | 尺寸/外形 | 3.780" L x 1.299" W x 3.110" H (96.00mm x 33.00mm x 79.00mm) |
产品信息
| 类型 | Housing, Sleeve | 样式 | Thru Type |
| 锁定位置 | Screw Locks on Hood | 行业别名 | VC-K-T3-Z |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 80°C |
