点击放大查看

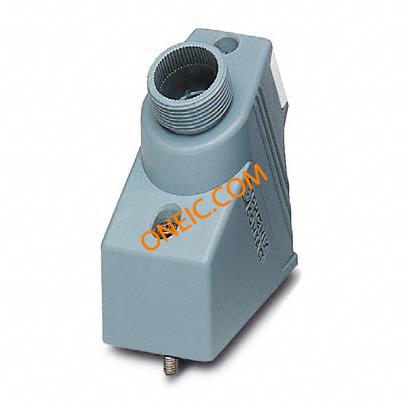

1852930
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Cable Mounting & Accessories VC-K-T1-Z Plastic Sleeve Housing, Locking Screws With Cylindrical Head CONN HOUSING LOC SCREW PLAS Housing VC-K-T1-Z Plastic sleeve housing, locking screws with cylindrical head, type 1, cable screw connection Pg16 VC-K-T1-Z Phoenix Contact VC1 系列 套管外壳 , PG16螺纹 |
| 分类 |
商业参数
| 商标名 | PLUSCON Device | 产品类别 | Cable Mounting & Accessories |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 33 | 高度 | 65 |
| 重量 | 1.631068 oz | 材料（通用） | Plastic |
| 包装方式 | Bulk | 螺纹尺寸 | PG16 |
| 连接器类型 | Hood | 壳体材料 | Polyamide (PA), Nylon |
| 总长度 | 66 | 尺寸/外形 | 2.598" L x 1.299" W x 2.795" H (66.00mm x 33.00mm x 70.99mm) |
产品信息
| 类型 | Housing, Sleeve | 样式 | Thru Type |
| 系列 | VC1 | 锁定位置 | Screw Locks on Hood |
| 附件类型 | 套管外壳 | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 80°C |
文档与媒体
相关型号
1855018
Phoenix Contact
Heavy Duty Power Connectors VC-D1-ST15-PE Conn Rectangular F 15 POS Crimp ST Panel Mount ML CONTACT CARRIER 15POS Contact insert, male, 15 pos + PE Contact insert VC-D1-ST15-PE INSERT W/O CONTACTS 15POS CRIMP VC-D1-ST15-PE Phoenix Contact 15针 P+E极 插头 电源连接器
1885392
Phoenix Contact
Cable Mounting & Accessories VC-K-KV-PG16 1x6/1x8 Cable Accessories Half Screw Connection Polyamide HALF SCREW CONNECTION PG16 VC-K-KV-PG161x6/1x8
1853764
Phoenix Contact
Cable Mounting & Accessories VC-K-KV-PG16( 9-13) Cable Accessories Half Screw Connection Polyamide HALF SCREW CONNECTION PG16 VC-K-KV-PG16(9-13)
1853751
Phoenix Contact
Cable Mounting & Accessories VC-K-KV-PG16 7-10.5 Cable Accessories Half Screw Connection Polyamide PG16 CABLE CLAMP Cable gland VC-K-KV-PG16( 7-10,5) Half screw connection Pg16, made of plastic, consisting of rubber seal with one hole and one pressure screw, for type ... Half screw connection Pg16, made of plastic, consisting of rubber seal with one hole and one pressure screw, for type 1 housings, cable [mm] 7 - 14 VC-K-KV-PG16(7-105)
1854459
Phoenix Contact
Cable Mounting & Accessories VC-K-KV-PG16 ( 4- 6,5) Cable Accessories Half Screw Connection Polyamide PG16 CABLE CLAMP VC-K-KV-PG16(4-65)
1853735
Phoenix Contact
Cable Mounting & Accessories VC-K-KV-PG16( 5- 8) Cable Accessories Half Screw Connection Polyamide PG16 CABLE CLAMP Cable gland VC-K-KV-PG16( 5- 8) VC-K-KV-PG16(5-8)
1853748
Phoenix Contact
Cable Mounting & Accessories VC-K-KV-PG16 ( 6 5- 9 5) Cable Accessories Half Screw Connection Polyamide CONN CABLE SCREW 6.5-9.5MM PG16 VC-K-KV-PG16(65-95)
1854844
Phoenix Contact
Cable Mounting & Accessories VC-K-KV-PG16(11 5-15 Cable Accessories Half Screw Connection Polyamide CABLE GRIP PG16 Cable gland VC-K-KV-PG16(11,5-15,5)

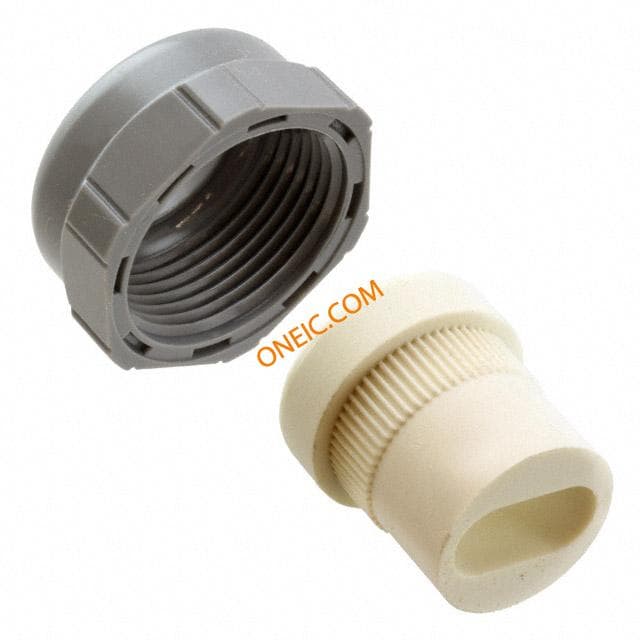

1607664
