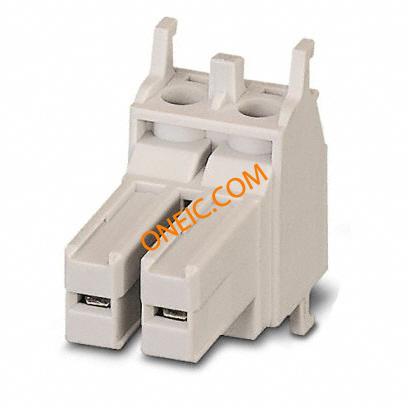

点击放大查看
1852846
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ VC-TFS 2 Conn Terminal Block F 2 POS 7.5mm Screw RA Cable Mount 20A CONN CONTACT 2POS SCREW CLAMP Heavy Duty Power Connectors VC-TFS 2 VC-TFS2 VC-TFS系列 紧凑型电源连接器 触点插件, 使用于Sleeve Frame |
| 分类 |
商业参数
| 商标名 | PLUSCON Device | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 20A |
| 最小输入电压 | 400V | ||
机械参数
| 深度 | 30.6 | 间距 | 7.5 |
| 高度 | 26.6 | 重量 | 0.309705 oz |
| 包装方式 | Bulk | 导线线规 | 12-24 |
| 端接方式 | Screw | 安装类型 | Cable Mount |
| 连接器类型 | Insert | 接触镀层 | Tin |
| 排数 | 1 | 插入力 | Female |
| 触头材料 | Brass | 壳体材料 | Polyamide |
| 总长度 | 15 | 端接样式 | Screw |
| 触点数 | 2 | 位数 | 2 |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | Variocon | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | Contact Insert |
| 适用产品/相关产品 | Sleeve Frame | ||
环境参数
| 工作温度 | -40°C ~ 100°C | ||
