1852820
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors VC-TFS 8 Conn Terminal Block F 8 POS 3.5mm Screw RA Cable Mount 10A CONN CONTACT 8POS SCREW CLAMP VC-TFS8 Phoenix Contact Variocon 系列 2行 8针 直角 插座 电源连接器 , 电缆安装 |
| 分类 |
商业参数
| 商标名 | PLUSCON Device | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 8A |
| 最小输入电压 | 160V | ||
机械参数
| 深度 | 21.7 | 间距 | 3.5 |
| 高度 | 26.6 | 重量 | 0.258205 oz |
| 包装方式 | Bulk | 导线线规 | 16-28 |
| 方向 | 直角 | 端接方式 | Screw |
| 安装类型 | Cable Mount | 连接器类型 | Insert |
| 接触镀层 | Tin | 排数 | 2 |
| 插入力 | Female | 触头材料 | Brass |
| 壳体材料 | Polyamide | 总长度 | 15 |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 8 | 位数 | 8 |
| 线规或范围 - AWG | 28-16 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | Variocon | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | ||
环境参数
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
0803922
Phoenix Contact
Printers SK U/5 0 WH: UNBEDRUCKT UNPRINTED MARKER CARDS Connector Accessories Marker Card Polyester White Phoenix Contact SK 系列 标记标签

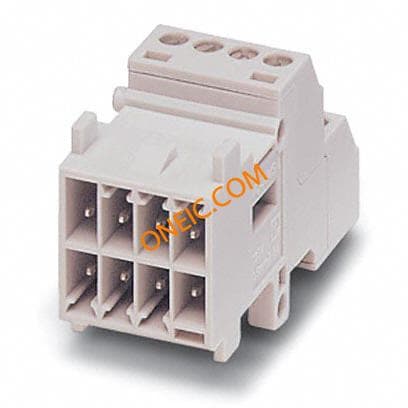

1854022
