点击放大查看

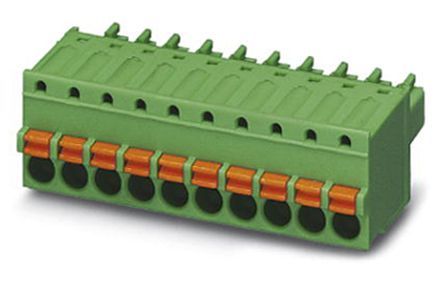

1851122
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks FK-MCP1,5/10-ST-3.81 Conn Terminal Block F 10 POS 3.81mm ST Cable Mount 8A TERM BLOCK PLUG 10POS STR 3.81MM Printed-circuit board connector FK-MCP 1,5/10-ST-3,81 Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 10, type of conn Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn FK-MCP15/10-ST-381 Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 10 路 母 绿色 插头, 弹簧笼端接 |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 标准包装规格 | 50 | 零件号别名 | 1,5/10-ST-3.81 FK-MCP |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 供电电压 | 300V |
| 最大额定电流 | 8 A | 最小输入电压 | 160V |
机械参数
| 颜色 | Green | 深度 | 20.8 |
| 间距 | 0.150" (3.81mm) | 高度 | 12.4 |
| 重量 | 3.597944 oz | 材料（通用） | 聚酰胺，锡（触点） |
| 包装方式 | Bulk | 导线线规 | 16-28 AWG |
| 端接方式 | Screwless - Push In | 安装类型 | Straight |
| 连接器类型 | 母座 | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 180° |
| 壳体材料 | Polyamide | 总长度 | 38.89 |
| 端接排数 | 弹簧笼 | 电缆端接方式 | 180° |
| 端接样式 | Spring Cage | 触点数 | 10 |
| 位数 | 10 | 接线端子类型 | Plug, Female Sockets |
| 每层极数 | 10 | 线规或范围 - AWG | 26-16 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | FK-MCP | 层数 | 1 |
| 每层位数 | 10 | 输出配置 | Free Hanging (In-Line) |
