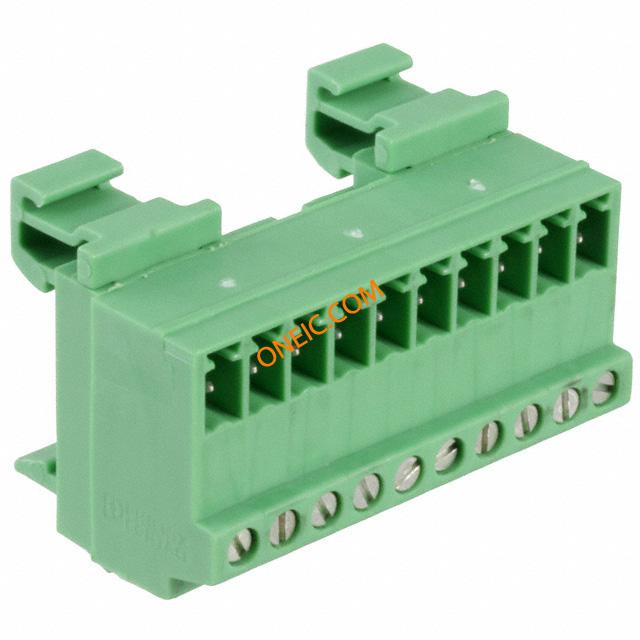

1832811
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MCVK 1.5/10-G-3.81 Conn Terminal Block F 10 POS 3.81mm Screw 8A PLUG TERM BLOCK 10POS 3.81MM Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 10, Assembly: DIN rail MCVK1,5/10-G-3,81 |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 8A | UL电压 | 300V |
| 电流 - IEC | 8A | IEC电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | ||
机械参数
| 颜色 | Green | 深度 | 26.7 |
| 间距 | 3.81 mm | 高度 | 27.8 |
| 长度 | 1.555" (39.50mm) | 重量 | 0.506111 oz |
| 端接方式 | Screw | 高度（最大） | 1.051" (26.70mm) |
| 外壳颜色 | Green | 安装类型 | DIN Rail |
| 接触镀层 | Tin | 安装样式 | DIN Rail |
| 排数 | 1 | 壳体材料 | Polyamide |
| 总长度 | 39.49 | 剥线长度（范围） | 7mm |
| 端子宽度 | 27.8mm | 端接样式 | Plug Receptacles, Screw |
| 触点数 | 10 | 位数 | 10 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 14-30 AWG |
| 线规或范围 - mm² | 0.14-0.5mm² | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 层数 | 1 | ||
相关型号

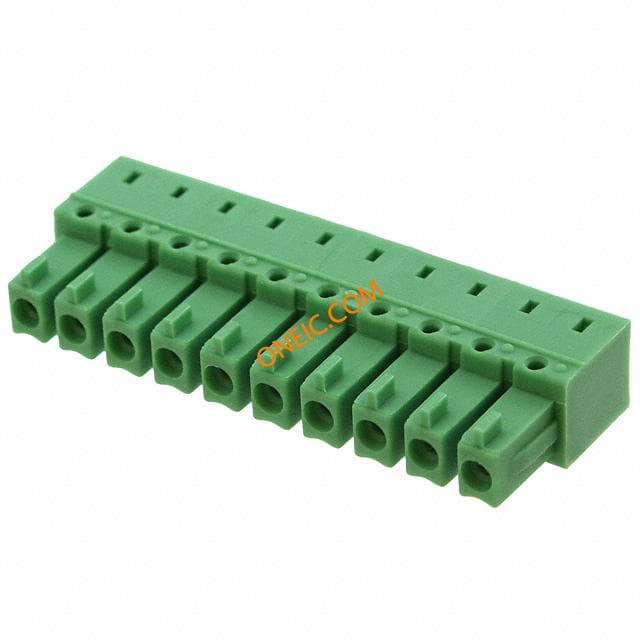

1862658
Phoenix Contact
Pluggable Terminal Blocks IMC 1.5/10-G-3.81 TERM BLOCK HDR 10POS R/A 3.81MM Header for PCB plug connector IMC 1,5/10-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering HEADER,PITCH:3.81MM,POS10
1734634
Phoenix Contact
Terminal Block Tools & Accessories CODING SECTION CP-MSTB Connector Accessories Coding Section Is Inserted Into The Slot On The Plug Or Inverted Header Red TERM BLK PLUG CODE SECTION RED CP-MSTB KEYINGPROFILE,REDINSULATINGMATERIAL

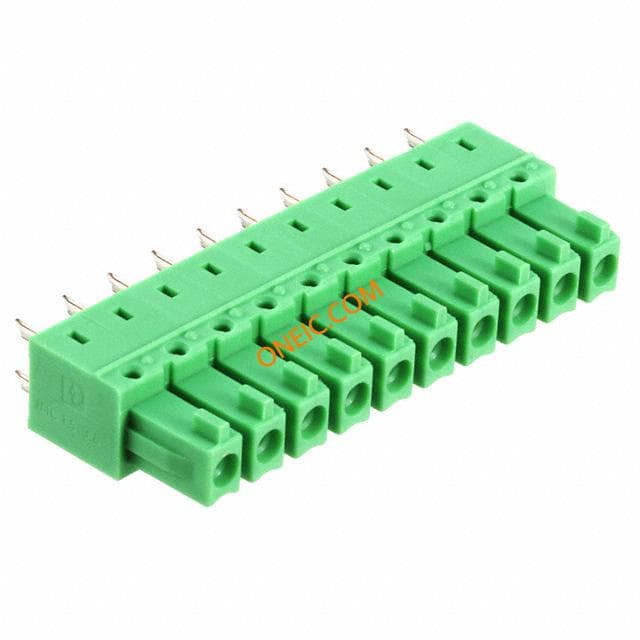

1875506
