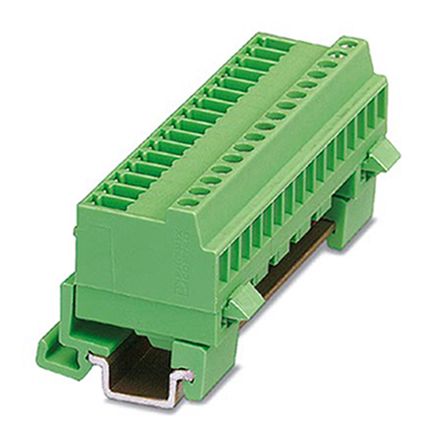

1832808
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MCVK 1.5/ 9-G-3.81 Conn Terminal Block F 9 POS 3.81mm Screw 8A TERM BLOCK PLUG Header for PCB plug connector MCVK 1,5/ 9-G-3,81 Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 9, Assembly: DIN rail MCVK15/9-G-381 Phoenix Contact MCVK 系列 绿色 印刷电路板管座 , 8A, 320 V |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 商标名 | COMBICON Control |
| 其他名称 | MCVK 1 5/ 9-G-3 81 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 8A | UL电压 | 300V |
| 电流 - IEC | 8A | IEC电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 8A |
| 最小输入电压 | 160V | ||
机械参数
| 颜色 | 绿色 | 深度 | 26.7 |
| 间距 | 3.81mm | 高度 | 27.8 |
| 长度 | 1.405" (35.69mm) | 端接方式 | Screw |
| 高度（最大） | 1.051" (26.70mm) | 外壳颜色 | Green |
| 安装类型 | DIN Rail | 接触镀层 | Tin |
| 排数 | 1 | 壳体材料 | Polyamide |
| 总长度 | 35.68 | 剥线长度（范围） | 7mm |
| 端子宽度 | 27.8mm | 端接排数 | 螺钉 |
| 端接样式 | Plug Receptacles | 触点数 | 9 |
| 位数 | 9 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 14-30 AWG | 线规或范围 - mm² | 0.14-0.5mm² |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MCVK | 层数 | 1 |
相关型号
1875496
Phoenix Contact
Pluggable Terminal Blocks IMCV 1.5/ 9-G-3.81 Conn Wire to Board HDR 9 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 9POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 9-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMCV15/9-G-381 Phoenix Contact COMBICON IMCV 系列 3.81mm节距 9路 印刷电路板接线端子块, 焊接端接, 8A

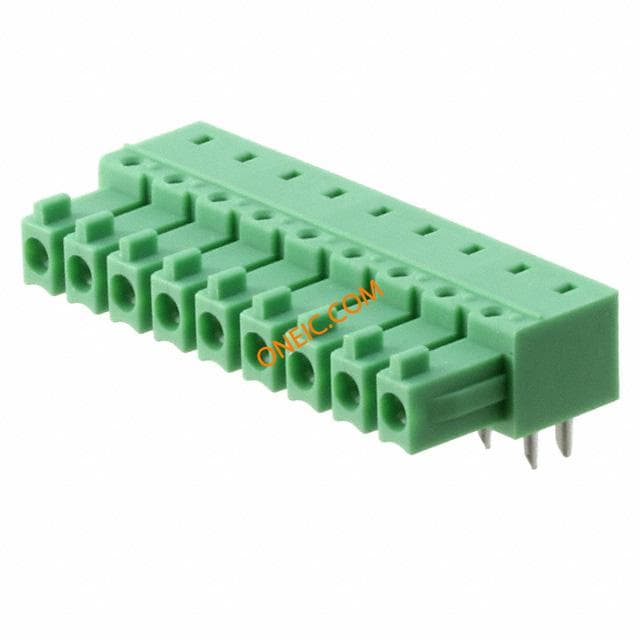

1862645
