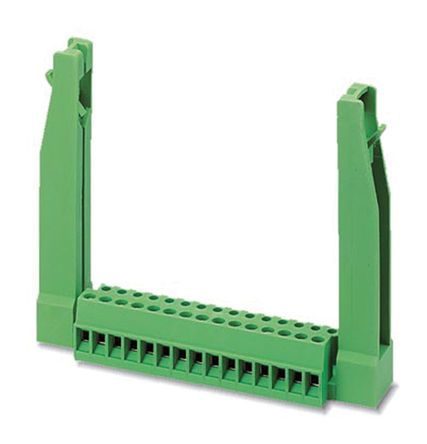

1824269
| 制造商 | |
| 描述 | Pluggable Terminal Blocks MSTBU 2 5/16-STD-5 0 Conn Terminal Block F 16 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK RCPT 16POS 5.08MM Printed-circuit board connector MSTBU 2,5/16-STD-5,08 MSTBU25/16-STD-508 Phoenix Contact COMBICON MSTBU 系列 5.08mm 节距 16 路 母 绿色 插头, 螺钉端接 |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 25.5 |
| 间距 | 0.200" (5.08mm) | 高度 | 17 |
| 重量 | 7.266436 oz | 材料（通用） | 聚酰胺，镀锡 |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 安装类型 | Panel Mount |
| 连接器类型 | 母座 | 接触镀层 | Tin |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 50.64 | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 16 |
| 位数 | 16 | 接线端子类型 | Receptacle, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MSTBU | 产品特性 | Flange, Retention Latches |
| 层数 | 1 | 每层位数 | 16 |
