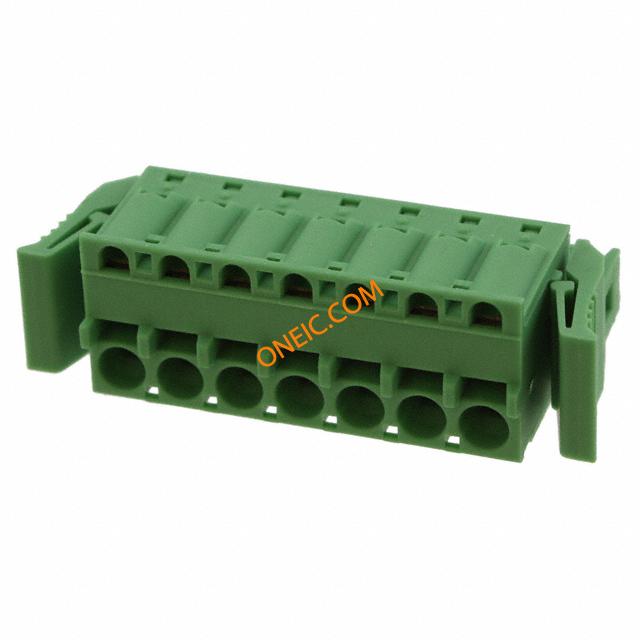

1808611
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | CONN TERM BLK PLUG 7POS 5.08MM TERM BLOCK PLUG 7POS STR 5.08MM Pluggable Terminal Blocks FKCS 2,5/ 7 ST-5,08-RF FKCS25/7-ST-508-RF |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 10A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Green | 间距 | 0.200" (5.08mm) |
| 包装方式 | Bulk | 导线线规 | 12-26 AWG |
| 端接方式 | Screwless - Push In | 安装类型 | Free Hanging (In-Line) |
| 接触镀层 | Tin | 插头进线方向 | 180° |
| 端接样式 | Spring Cage | 触点数 | 7 |
| 位数 | 7 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 系列 | FKCS | 产品特性 | Latch Lock, Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 7 |
