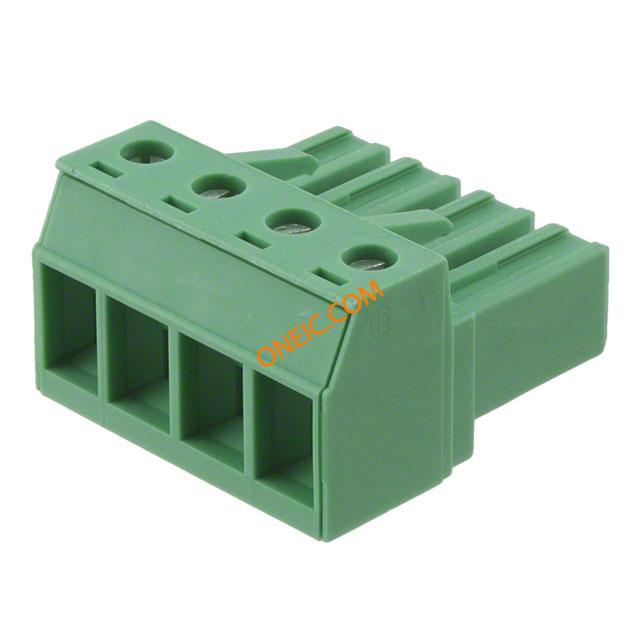

1804920
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | プラグ着脱可能ターミナルブロック 4P 7.62mm Conn Terminal Block F 4 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 4POS STR 7.62MM Non-Fused Terminal Block Cable Mount 4 Way, Screw Down, 400V Pluggable Terminal Blocks 4P 7.62mm PC4/4-ST-762 Terminal block; plug; female; straight; 7.62mm; ways:4; 20A; 300V Phoenix Contact 4 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 400 V |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Power | 子类别 | Connector Terminal Blocks |
| 零件号别名 | 4-ST-7,62 4/ PC | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 5A | 电压 | 600V |
| 额定电压 | 400 V | 极数 | 4 |
| 最大额定电流 | 20A | 最小输入电压 | 630V |
机械参数
| 颜色 | Green | 深度 | 30.7 |
| 间距 | 0.300" (7.62mm) | 高度 | 18.1 |
| 长度 | 7 mm | 重量 | 2.646 lbs |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 方向 | straight |
| 端接方式 | Screw | 柱间距 | 7.62mm |
| 安装类型 | Cable Mount | 连接器类型 | female |
| 接触镀层 | Tin | 排数 | 1 |
| 插头进线方向 | 180° | 壳体材料 | Polyamide |
| 总长度 | 30.46 | 包装数量 | 50 |
| 端接排数 | 螺钉拧紧 | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-10 | 线规或范围 - mm² | 24 → 10 AWG |
| 每排/每行位置数 | 4 | ||
产品信息
| SPG | 50 | 类型 | Terminal Block |
| 连接器性别 | F | 系列 | PC |
| 产品特性 | Retention Latches (Non-Wire Side) | CAD图纸 | 3D CAD Model |
| 线路数量 | 4 | 单元数量 | 1 |
| 行业别名 | PC 4/ 4-ST-7, 62 | 层数 | 1 |
| 每层位数 | 4 | ||
文档与媒体
相关型号
1849998
Phoenix Contact
DINレール・ターミナルブロック PCVK 4-7 62 Conn Terminal Block F 1 POS Screw ST 20A PLUG TERM BLOCK 7.62MM 1POS Plug-in block for DIN rail mounting PCVK 4-7,62 DIN Rail Terminal Blocks PCVK 4-7 62 Din-Railterminalblock,Plug,20A,630V,1Position,ScrewConnection

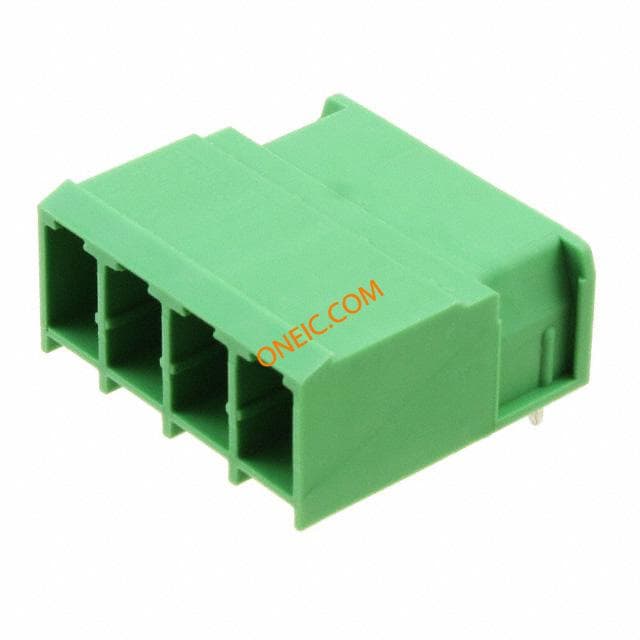

1804810
