1803015
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MSTBVK 2.5/ 8- GF-5,08 Conn Terminal Block F 8 POS 5.08mm Screw Panel Mount 12A CONN DIN RAIL 8POS 5.08MM MSTBVK25/8-GF-508 Phoenix Contact MSTBVK 系列 绿色 端子束夹 , 12A, 630 V |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 30 |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 12A | UL电压 | 300V |
| 电流 - IEC | 12A | IEC电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | 绿色 | 深度 | 27.2 |
| 间距 | 5.08 mm | 高度 | 30 |
| 长度 | 2.046" (51.96mm) | 重量 | 7.442806 oz |
| 导线线规 | 12-24 | 端接方式 | Screw |
| 高度（最大） | 1.181" (30.00mm) | 外壳颜色 | Green |
| 安装类型 | Panel Mount | 接触镀层 | Tin |
| 安装样式 | DIN Rail | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 51.96 |
| 剥线长度（范围） | 7mm | 端子宽度 | 27.2mm |
| 端接排数 | 螺钉 | 端接样式 | Plug Receptacles, Screw |
| 触点数 | 8 | 位数 | 8 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.2-2.5mm² | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MSTBVK | 产品特性 | Mating Flange |
| 层数 | 1 | ||
文档与媒体
相关型号

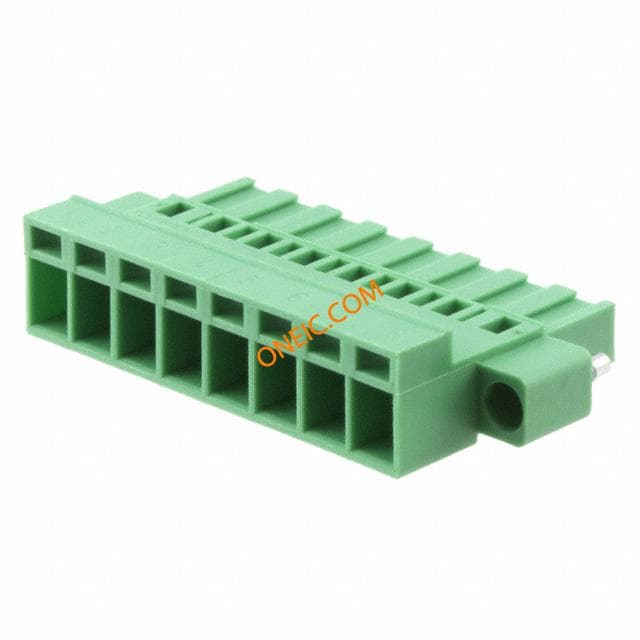

1809792
Phoenix Contact
Pluggable Terminal Blocks MSTBC 2,5/ 8STZF5,08 Conn Wire to Wire F 8 POS 5.08mm Crimp ST Panel Mount TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector MSTBC 2,5/ 8-STZF-5,08 Conn;TermBlk;PCB;Plug;8;5.08mm;20-14AWG;Green;12A;320V
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
1733169
Phoenix Contact
Terminal Block Tools & Accessories EBP 2- 5 Conn Jumper PIN 2 POS 5mm/5.08mm ST TERM BLOCK INSERT BRIDGE 2POS Insertion bridge, fully insulated, for plug connectors with 5.0 or 5.08 mm pitch InsertionBridge;TermBlk;2;FullyInsul.;forplugs/w5.0,5.08mmpitch Phoenix Contact PCB 针座插入桥接

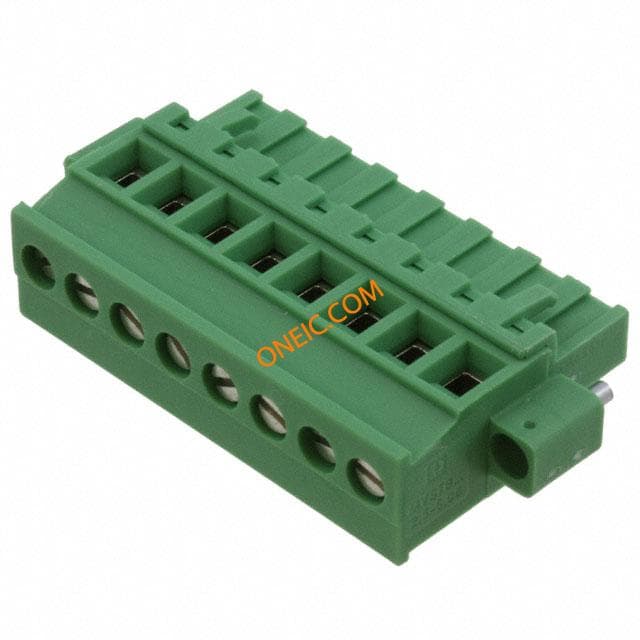

1835151
Phoenix Contact
Pluggable Terminal Blocks MVSTBR 2 5/ 8-STF-5 Conn Terminal Block F 8 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 8POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 8-STF-5,08 Conn;TermBlk;Plug;8;5.08mm;24-12AWG;Green;12A;250V Terminal block; plug; female; angled 90°; screws; 5.08mm; ways:8

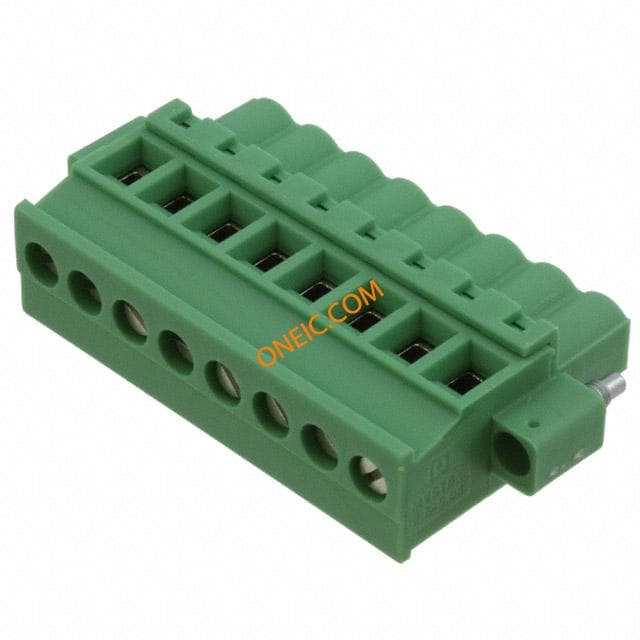

1834961
