点击放大查看

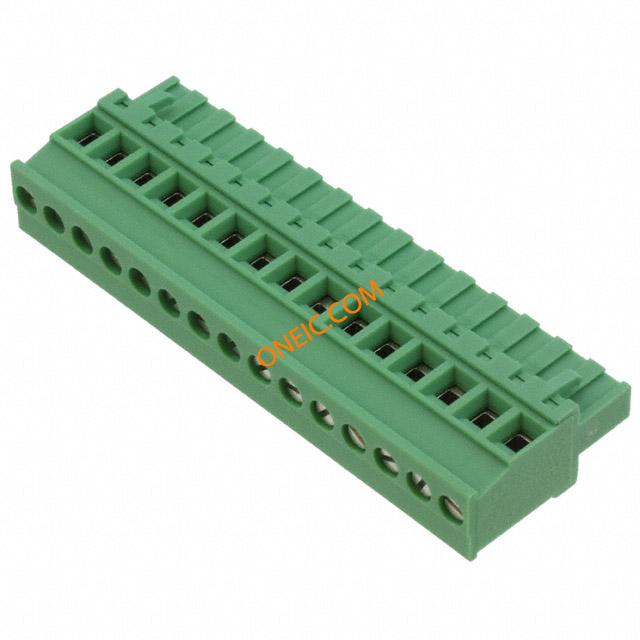

1792375
| 制造商 | |
| 描述 | Pluggable Terminal Blocks MVSTBR 2 5/15-ST-5 0 TERM BLOCK PLUG 15POS 5.08MM Printed-circuit board connector MVSTBR 2,5/15-ST-5,08 Plug component, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08 mm, no. of positions: 15, type of con Conn Terminal Block F 15 POS 5.08mm Screw ST Cable Mount 12A MVSTBR25/15-ST-508 Phoenix Contact MVSTBR 系列 15路 5.08mm节距 印刷电路板接线端子块, 连接器 |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 28 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Green | 间距 | 0.200" (5.08mm) |
| 长度 | 7 mm | 重量 | 4.656163 oz |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 接触镀层 | Tin | 插头进线方向 | 90° |
| 触头材料 | 锡 | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 15 |
| 位数 | 15 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Wire to Wire | 系列 | MVSTBR |
| 产品特性 | Retention Latches (Wire Side) | 行业别名 | MVSTBR 2, 5/15-ST-5, 08 |
| 层数 | 1 | 每层位数 | 15 |
