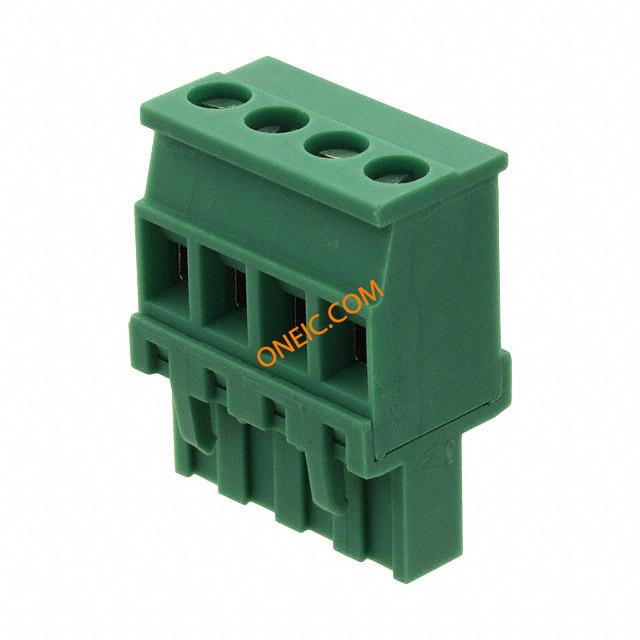

1792265
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08 4P PLUG 90DEG Conn Terminal Block F 4 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 4POS 5.08MM Conn Terminal Blocks F 4 POS 5.08mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;4;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 4 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 零件号别名 | 2.5/ 4-ST-5.08 MVSTBR | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 250V@IEC|300V@UL | 最小供电电压 | 250V |
机械参数
| 颜色 | Green | 深度 | 12.6 mm |
| 间距 | 0.200" (5.08mm) | 高度 | 26 mm |
| 长度 | 7 mm | 重量 | 4.656163 oz |
| 材料（通用） | 尼龙 | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 安装样式 | Cable | 排数 | 1 |
| 插头进线方向 | 90° | 壳体材料 | Polyamide |
| 总长度 | 20.32 mm | 端接排数 | 螺钉拧紧 |
| 端接样式 | Screw | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | 线规或范围 - mm² | 30 → 12 AWG |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MVSTBR | 产品特性 | Retention Latches (Wire Side) |
| CAD图纸 | 3D CAD 模型 | 线路数量 | 4 |
| 行业别名 | MVSTBR 2, 5/ 4-ST-5, 08 | 层数 | 1 |
| 每层位数 | 4 | ||
