点击放大查看

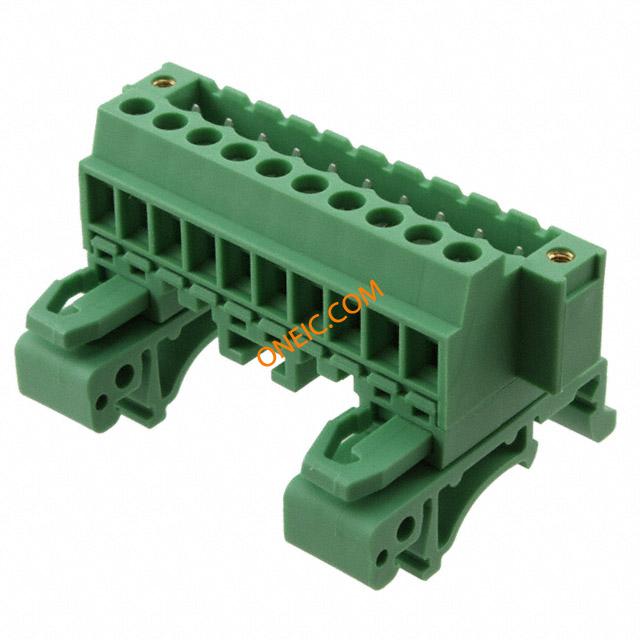

1788004
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks UMSTBVK 2 5/10-GF-5 Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A PLUG TERM BLOCK 10POS 5.08MM Plug-in block for mounting on DIN rails UMSTBVK 2,5/10-GF-5,08 UMSTBVK25/10-GF-508 Phoenix Contact UMSTBVK 系列 5.08mm 节距 10 路 母 绿色 插头, 螺钉端接 |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 12 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 12A | UL电压 | 300V |
| 电流 - IEC | 12A | IEC电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 宽度 | 42.5mm | 长度 | 2.446" (62.12mm) |
| 重量 | 7.442806 oz | 材料（通用） | 聚酰胺，镀锡 |
| 导线线规 | 24 | 高度（最大） | 1.984" (50.40mm) |
| 外壳颜色 | Green | 安装类型 | DIN Rail |
| 连接器类型 | 母座 | 安装样式 | DIN Rail |
| 剥线长度（范围） | 7mm | 端子宽度 | 42.5mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 10 | 位数 | 10 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 24-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Wire to Wire | 系列 | UMSTBVK |
| 产品特性 | Mating Flange | 行业别名 | UMSTBVK 2, 5/10-GF-5, 08 |
| 层数 | 1 | ||
