1777280

点击放大查看

1777280

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 5.08 PLUG STRAIGHT Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 2POS STR 5.08MM Non-Fused Terminal Block Cable Mount 2 Way, Screw Down, 320V PCBTerminalBlock,2Pos Phoenix Contact 2 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Plugs交货时间20 Days
商标名COMBICON Control子类别Connector Terminal Blocks
零件号别名FRONT-MSTB2,5/2-ST-5,08产品类别Pluggable Terminal Blocks
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压320 V最大额定电流12A
最小输入电压320V

机械参数

颜色Green深度27.5
间距0.200" (5.08mm)高度15
重量4.726711 oz材料（通用）Nylon
包装方式Bulk导线线规12-30 AWG
端接方式Screw安装类型Cable Mount
接触镀层Tin排数1
插头进线方向180°壳体材料Polyamide
总长度10.16端接排数螺钉拧紧
端接样式Screw触点数2
位数2接线端子类型Plug, Female Sockets
线规或范围 - AWG24-12线规或范围 - mm²24 → 12 AWG
每排/每行位置数2

产品信息

类型Terminal Block连接器性别F
系列MSTB产品特性Retention Latches (Non-Wire Side)
线路数量2行业别名FRONT-MSTB 2, 5/ 2-ST-5, 08
层数1每层位数2

文档与媒体

PDF 文档
1777280

相关型号

1763074

1763074

Phoenix Contact

Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 2-G-5,08 Header(2position)10AMP(5.08mmpitch)

¥9.1800
详情
1802430

1802430

Phoenix Contact

プラグ着脱可能ターミナルブロック MDSTBW 2.5/ 2-G-5.08 Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTBW 2,5/ 2-G-5,08 Pluggable Terminal Blocks MDSTBW 2.5/ 2-G-5.08 MDSTBW25/2-G-508

¥11.9680
详情
暂无图片

1872460

Phoenix Contact

プラグ着脱可能ターミナルブロック A-MSTBVA 2.5/ 2-G -5.08 Base Strip, Nominal Current 12 A, Nominal Voltage 250 V HEADER TERM BLOCK 2 POS 5.08MM Pluggable Terminal Blocks A-MSTBVA 2.5/ 2-G -5.08 A-MSTBVA25/2-G-508

¥8.7720
详情

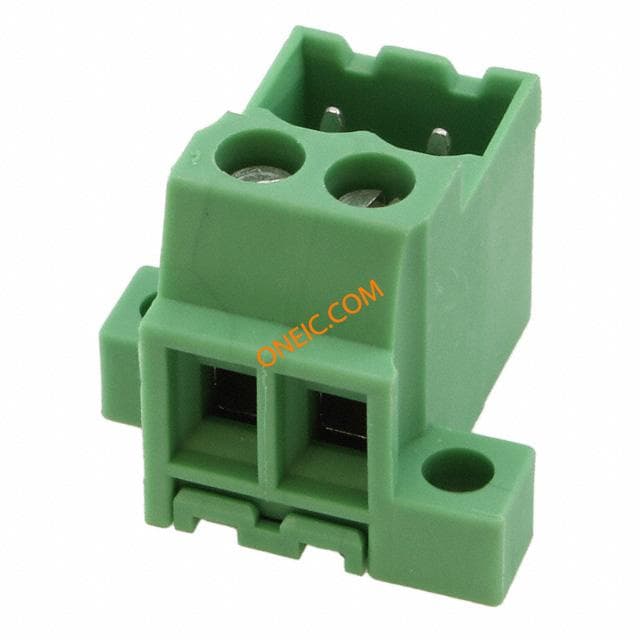

1788538
