点击放大查看

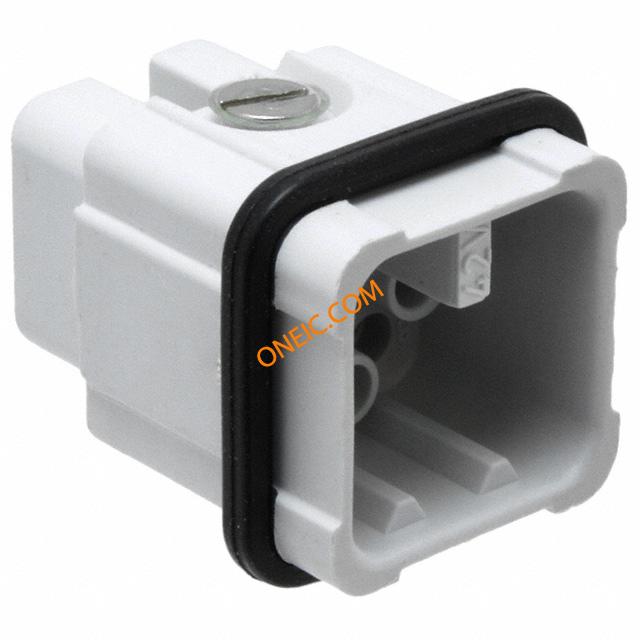

1775758
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-D 8-ESTC Conn HEAVYCON Insert F 8 POS Crimp ST Panel Mount CONN MALE INSERT 8POS HEAVYCON Contact insert HC-D 8-ESTC Heavy Duty Power Connectors HC-D 8-ESTC HC-D8-ESTC |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 50V | 最大额定电流 | 10A |
| 最小输入电压 | 50V | ||
机械参数
| 尺寸 | D8 | 深度 | 21 |
| 重量 | 0.333339 oz | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 排数 | 2 |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 30.2 |
| 端接样式 | Crimp | 第一触头极性 | F |
| 触点数 | 8 | 位数 | 8 |
| 线规或范围 - AWG | 26-14 | ||
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 系列 | D8 | 产品子类型 | Inserts |
| 行业别名 | HC-D 8-ESTC | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
1604883
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 7-KML-51/ O1M20/ALU HEAVYCON Coupling Housing D7, With Single Locking Latch, Height 61mm, With Support 1Xm20, Zinc HEAVYCON COUPLING HOUSING Housing for heavy-duty plug connectors HC-D7-KML-61/O1M20 Heavy Duty Power Connectors HC-D 7-KML-51/ O1M20/ALU HC-D7-KML-61/O1M20
1604884
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 7-KML-KML-51/ 01M20/PA HEAVYCON Coupling Housing D7, With Single Locking Latch, Height 51mm, With Support 1XM20, PA HEAVYCON COUPLING HOUSING Housing for heavy-duty plug connectors HC-D7-KML-61/O1M20/PA Heavy Duty Power Connectors HC-D 7-KML-KML-51/ 01M20/PA HEAVYCON coupling housing D7, with single locking latch, height 51 mm, with support 1xM20, PA HC-D7-KML-61/O1M20/PA
1663365
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Phoenix Contact 1663365 Crimp Contact Terminal Block, Series: CK Crimp contact CK1,6-ED-1,00ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag TURNED1.6CRIMPCONTACTMALE Phoenix Contact CK 系列 压接触点
1773048
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D7-TFL-48/M1PG11G ALUMINUM Connector Accessories Sleeve Housing Zinc Gray SLEEVE HOUSING SINGLE LOCK 57 MM Connector Sleave Housing 1XPG11Entry Housing for heavy-duty plug connectors HC-D 7-TFL-57/M1PG11G Heavy Duty Power Connectors HC-D7-TFL-48/M1PG11G ALUMINUM HC-D7-TFL-57/M1PG11G Phoenix Contact 电源连接器
1674901
Phoenix Contact
ヘビーデューティパワーコネクタ CK1.6-ED-0.37ST AU Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 24-22AWG Crimp contact CK1,6-ED-0,37ST AU Heavy Duty Power Connectors CK1.6-ED-0.37ST AU TURNED1.6CRIMPCONTACTMALE
1884995
Phoenix Contact
Heavy Duty Power Connectors Fiber Opt Male Cont POF, for VC-D Insert Contact PIN/SKT Crimp ST Cable Mount FIBER OPTIC MALE CONTACT POF POF male contact CK1,6-ED-ST-POF CK16-ED-ST-POF
1674927
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 2.5mm Au Contact PIN Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT MALE Crimp contact CK1,6-ED-2,50ST AU CK16-ED-250STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1674914
Phoenix Contact
ヘビーデューティパワーコネクタ CK1.6-ED-0.75ST AU Turned Male Contacts, Diameter 1.6mm, For HCM12, HCMEMV, HCD, HCDD And VCD Contact Carriers CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-0,75ST AU Heavy Duty Power Connectors CK1.6-ED-0.75ST AU CK16-ED-075STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 5mA/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D

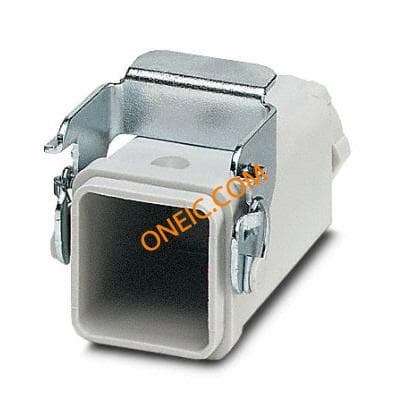

1772308
Phoenix Contact
Heavy Duty Power Connectors HC-D7-KML51/M1PG11PA Coupling Housing, With Single Locking Latch, Height 61mm, With Screw Connection, 1X PG11, Material PA COUPLING HOUSING LOCKING LATCH Housing for heavy-duty plug connectors HC-D 7-KML-61/M1PG11/PA HC-D7-KML-61/M1PG11/PA
1663381
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 2.5mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 14AWG Crimp contact CK1,6-ED-2,50ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTMALE
1772256
Phoenix Contact
ヘビーデューティパワーコネクタ HCD 7-TFL-49/M1PG11S PG11 SLEEVE HOUSING Sleeve Housing, For Single Locking Latch, Height H 49mm, With Screw Connection, 1X Pg11, Lateral Cable Entry, Material Pa SLEEVE HOUSING LOCKING LATCH R/A Housing for heavy-duty plug connectors HC-D 7-TFL-49/M1PG11S/PA Heavy Duty Power Connectors HCD 7-TFL-49/M1PG11S PG11 SLEEVE HOUSING HC-D7-TFL-49/M1PG11S/PA
1674888
Phoenix Contact
Heavy Duty Power Connectors CK1.6-ED-1.00ST AU Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-1,00ST AU Turned 1.6 crimp contact, individual male contact, core diameter 0.75 to 1.00 mm², gold-plated CK16-ED-100STAU

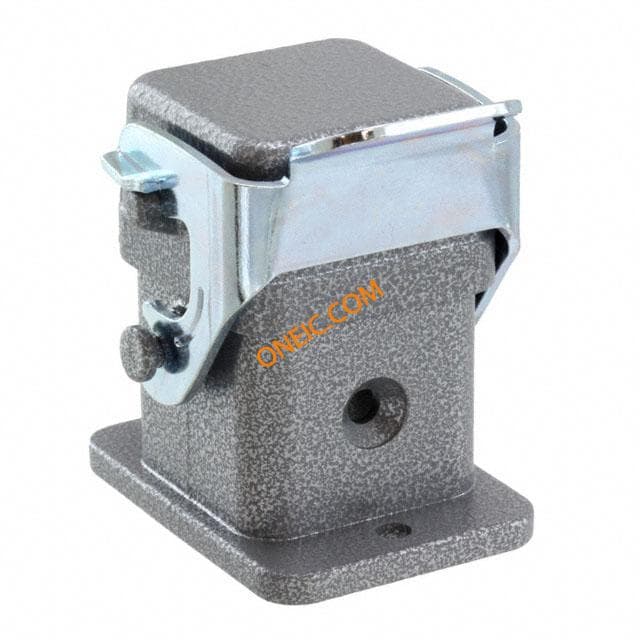

1684994
