点击放大查看

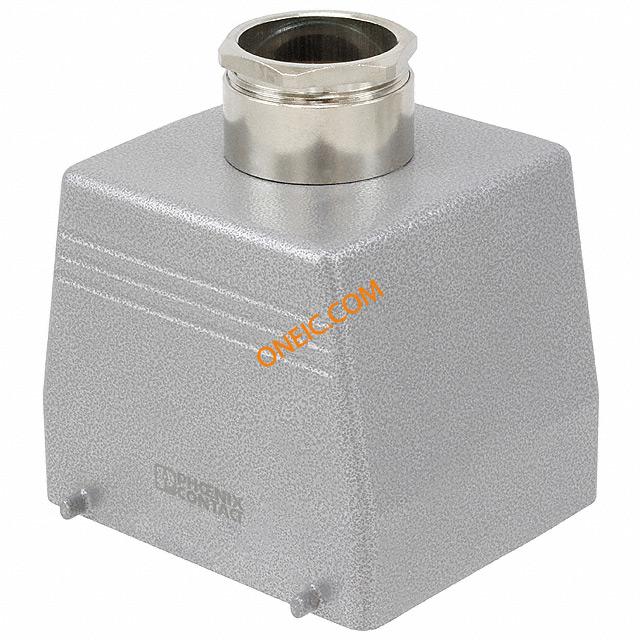

1775680
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B 32-TFQ-80 HSNG PG29 STRT ENTRY Connector Accessories Sleeve Housing SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 32-TFQ-80/M1PG29G Sleeve housing, for double locking latch, height 80 mm, with screw connection, 1x Pg29, straight cable entry SLEEVEHOUSINGDOUBLELOCKLATCH80MM |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Accessories | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | Locking Clip on Base Bottom | ||
机械参数
| 尺寸 | B32 | 高度 | 80 |
| 重量 | 1 lb | 包装方式 | Bulk |
| 螺纹尺寸 | PG29 | 外壳表面处理 | Powder Coated |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 总长度 | 93.5 | 尺寸/外形 | 3.680" L x 3.110" W x 3.150" H (93.50mm x 79.00mm x 80.00mm) |
| 端接样式 | Screw | 外部壳体颜色 | Gray |
产品信息
| 类型 | Sleeve Housing | 样式 | Top Entry |
| 系列 | Heavycon | 产品子类型 | Housings |
| 锁定位置 | Locking Clip on Base Bottom | 行业别名 | HC-B 32-TFQ-80/M1PG29G |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
