点击放大查看
1775664
| 制造商 | Phoenix Contact GmbH & Co. KG |

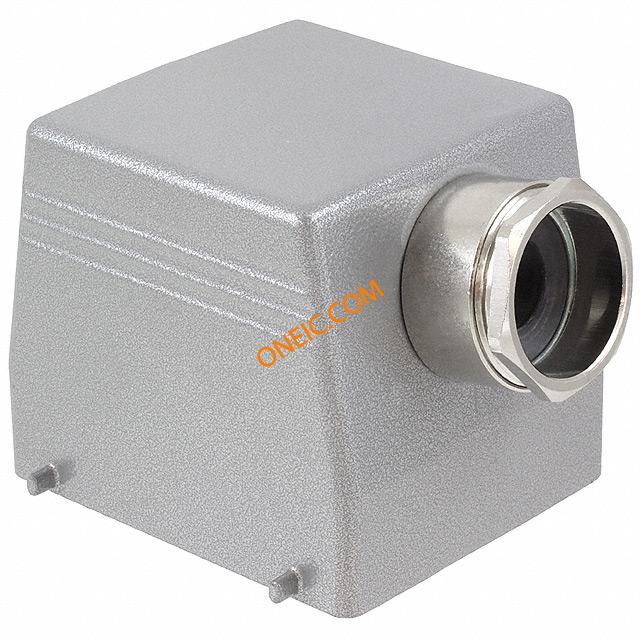

| 描述 | Heavy Duty Power Connectors HC-B 32-TFQ-80/M1PG2 Connector Accessories Sleeve Housing Aluminum Gray SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 32-TFQ-80/M1PG29S Sleevehousing,fordoublelockinglatch,height80mm,withscrewconnection |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Accessories | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B32 | 高度 | 79 |
| 重量 | 1.047 lbs | 包装方式 | Bulk |
| 螺纹尺寸 | PG29 | 外壳颜色 | Gray |
| 连接器类型 | Hood | 外壳涂层 | Powder Coated |
| 壳体材料 | Aluminum, Die Cast | 总长度 | 93.5 |
| 尺寸/外形 | 3.680" L x 3.110" W x 3.150" H (93.50mm x 79.00mm x 80.00mm) | 端接样式 | Screw |
产品信息
| 类型 | Sleeve Housing | 样式 | Side Entry |
| 系列 | Heavycon | 产品子类型 | Housings |
| 锁定位置 | Locking Clip on Base Bottom | 行业别名 | HC-B 32-TFQ-80/M1PG29S |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
